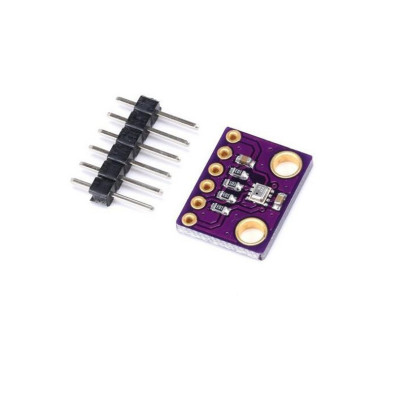

BMP280 atmospheric pressure, temperature sensor, 3.3V
The module for precise measurement of atmospheric pressure and ambient temperature in low-power projects, operates at 3.3V and is ideal for weather stations, altimeters and environmental monitoring. It offers I2C or SPI communication, good reading stability, compact size and excellent compatibility with Arduino, ESP32 and other development boards.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Bosch BMP280-based atmospheric pressure and temperature sensor module, compatible with 3.3V development boards, designed for accurate and stable measurements in electronic applications. The sensor measures atmospheric pressure and ambient temperature (does not measure humidity), offers I2C and SPI communication, low power consumption, compact size and excellent compatibility with Arduino, ESP32 and other development boards.
The module operates at 3.3V logic level, allows I2C address selection via the SDO pin (by default it is connected to the internal pull-up resistor) and can be used directly in I2C mode without connecting the CSB pin, due to the default configuration of the board.
For SPI communication, the module changes the pin assignments, SCL becomes SPI clock, SDA becomes MOSI, SDO becomes MISO and CSB becomes Chip Select. An essential condition for SPI for the BMP280 to operate in SPI mode, the CSB pin must be connected to a GPIO pin of the board and controlled from the code (CSB must be pulled LOW to select the sensor). If CSB remains HIGH, the sensor enters I2C mode.
Specifications:
Model: BMP280
Supply voltage: 1.8 – 3.3 VDC
Logic voltage: 3.3 V
Communication interface: I2C up to 3.4 MHz
Communication interface: SPI up to 10 MHz
Default I2C address: 0x76
Alternative I2C address: 0x77 via SDO pin pulled LOW
Temperature range: -40C to +85C
Temperature resolution: 0.01C
Temperature accuracy: ±1C
Atmospheric pressure range: 300 – 1100 hPa
Pressure resolution: 0.18 Pa
Pressure accuracy: ±1 Pa
Dimensions mm: 12 x 15.5mm
Use:
Attention! We recommend using a logic level converter if used with 5V boards!
The module connects to the development board using the I2C or SPI interface, depending on the application.
In I2C mode, the CSB pin does not need to be connected, as it is already internally pulled HIGH, which automatically enables I2C communication. Only VCC, GND, SDA and SCL connections are required.
The default I2C address is 0x76, and if the sensor is not detected on the bus, it can be changed to 0x77 by connecting the SDO pin to 3.3V. For quick testing and configuration, it is recommended to use example 2 from the Sparkfun library, the one dedicated to selecting the I2C address. ESP32 works natively at 3.3V and does not require a logic level converter, but for 5V development boards it is mandatory to use a logic level converter to protect the sensor.
SPI connection can be useful when it is necessary to use multiple sensors, without limiting I2C addresses.
Pinout with ESP32:
I2C:
| BMP280 | ESP32 | Description |
|---|---|---|
| VCC | 3V3 | 3.3V power supply |
| GND | GND | Mass |
| SDA | GPIO 21 | I2C data line |
| SCL | GPIO 22 | I2C clock line |
| CSB | OFFLINE | I2C mode active by default |
| SDO | not connected or 3V3 | I2C address selection (0x76 not connected, 0x77 connected to 3V3) |
SPI:
| BMP280 | ESP32 | Description |
|---|---|---|
| VCC | 3V3 | feeding |
| GND | GND | Mass |
| SCL | GPIO 18 | SCK SPI |
| SDA | GPIO 23 | DAWDLE |
| SDO | GPIO 19 | MISO |
| CSB | GPIO 5 | Chip Select |
