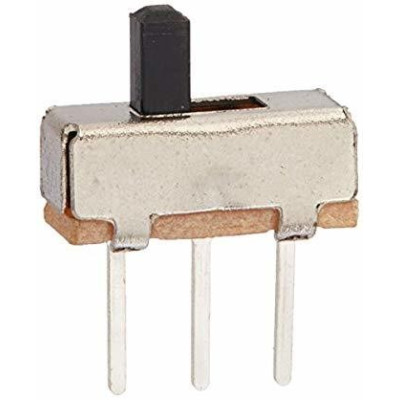

Mini slide switch SS12D00G3, SPDT, 2 positions, 0.5A at 50V DC, 2.54mm pitch
2-position mini slide switch, ideal for quick ON OFF selection in electronics projects and prototypes. It has long pins compatible with breadboards and test boards, provides precise and stable switching, is easy to mount and saves space thanks to its compact size, suitable for Arduino, modules and DIY circuits.
Buying this product earns you 0.05 RON in loyalty points.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The SS12D00G3 mini slide switch is an SPDT (1 pole, 2 positions) switch with three pins, used as a power switch, as a selector between two circuits or as a selector between two operating modes in small electronic devices. The plastic slider is pushed with a fingernail or the tip of a tool and stays fixed in the chosen position. It is suitable for low-voltage DC, in breadboard, printed circuit board or prototype assemblies.
The switch has a metal housing and three pins with a 2.54 mm pitch, so it fits directly into the holes of a breadboard or a standard-pitch test board. The middle pin is the common (COM) and is connected to pin 1 in one slider position and to pin 3 in the other. The switch has no center position. The contacts handle at most 0.5 A at 50 VDC, with a contact resistance of maximum 30 mOhm.
Main features include the slider with two stable positions, long 2.54 mm pitch pins compatible with the breadboard, the metal housing and operation as a simple ON/OFF switch (with COM and a single outer pin) or as an SPDT selector (with COM and both outer pins). The switch is a passive component and does not need its own power supply.
Specifications:
Maximum contact voltage: 50 VDC
Maximum contact current: 0.5 A
Type: Slide switch
Contact configuration: SPDT (1 pole, 2 positions)
Number of pins: 3
Pin pitch: 2.54 mm
Contact resistance: maximum 30 mOhm
Insulation resistance: minimum 100 MOhm at 500 VDC
Withstand voltage: 500 VAC for 1 minute
Layout:
| Element | Function |
|---|---|
| Slider (plastic handle) | Switches the internal contact between the two positions. Pushed to one end, it connects COM (pin 2) to pin 1, and pushed to the other end, it connects COM to pin 3. It stays in the chosen position after being released. |
| Pin 1 | Outer pin. It is connected to COM when the slider is on its side. |
| Pin 2 (COM) | Middle, common pin. The common input or output of the switch. |
| Pin 3 | Outer pin. It is connected to COM when the slider is on its side. |
| Metal housing | Protects the internal mechanism and the contacts. |
Pinout:
| Connector | Pin | Function |
|---|---|---|
| SS12D00G3 | 1 | Outer pin, connected to COM in one of the slider positions |
| SS12D00G3 | 2 (COM) | Common pin, the middle pin |
| SS12D00G3 | 3 | Outer pin, connected to COM in the other slider position |
| Slider position | Established contact |
|---|---|
| End towards pin 1 | COM (pin 2) connected to pin 1, pin 3 free |
| End towards pin 3 | COM (pin 2) connected to pin 3, pin 1 free |
Usage:
Use the switch only in low-voltage DC circuits, with at most 0.5 A at 50 VDC. Do not use it for mains voltage.
On a breadboard, insert the three pins into three different rows, otherwise the contacts will short-circuit to each other. On a printed circuit board, solder the pins into holes with a 2.54 mm pitch.
Nothing is printed on the switch, so number the pins from one end to the other, with pin 2 (COM) in the middle.
For the SPDT selector function, connect the source to COM and the two circuits to pins 1 and 3. The current flows to the circuit on the side to which you pushed the slider.
For the simple ON/OFF switch function, use COM and a single outer pin. The third pin remains free, and the circuit is closed in one slider position and open in the other.
Push the slider fully to one side or the other. The switch has no center position, and the position stays fixed after you release the slider.
Which position corresponds to pin 1 and which to pin 3 depends on how the switch is placed, so find this out by testing while observing the controlled circuit.
For loads larger than the contact limits, control a relay or a MOSFET transistor, and let the switch provide only the control signal.
For soldering, keep the soldering iron in contact for a short time, because prolonged heat can deform the plastic body of the mechanism.
