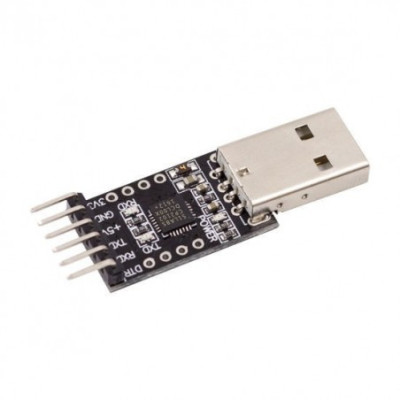

USB to TTL UART module, serial converter, 6 pin, CP2102, 3.3-5V
USB to TTL UART converter for fast PC connection to TTL logic modules and boards, based on CP2102 for stable communication, operates at 3.3V or 5V, has 6 pins for easy connections including DTR for reset and direct programming, supports speeds up to 1 Mbps and is compatible with Windows, MacOS and Linux.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The USB to TTL UART module is an essential conversion device for communication between a computer and a device with TTL logic (Transistor-Transistor Logic). The converter is based on the CP2102 chipset, ensuring reliable and stable communication. With the help of the 6 pins, various and adaptable connections can be made for different applications.
The board has an output signal for Reset, thus making it possible to program the Pro Mini boards directly.
Specifications:
Chipset: CP2102
Conversion: USB to TTL UART
Number of pins: 6
Working voltage: 3.3V - 5V
Transmission speed: Up to 1 Mbps
Data format: 8 bits
Buffer: 512 bytes
Compatibility: Windows, MacOS, Linux
Available pins: GND, TXD, RXD, 3.3V, 5V, DTR
Connector: USB type A
Status indication LEDs: Power, RX and TX
Short-circuit protection: Yes, resettable safety
Hardware handshake support: Yes
Dimensions: 26.5 x 15.5mm
