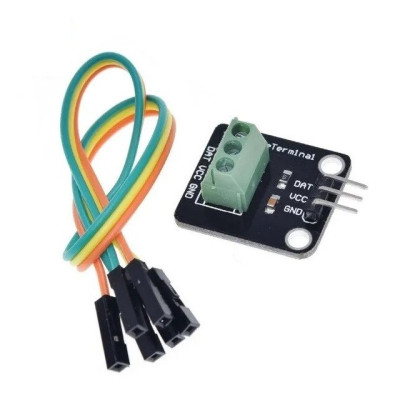

DS18B20 temperature sensor adapter module
Adapter board for DS18B20 probe that quickly simplifies connection to microcontroller, with screw terminal for secure wire clamping and 2.54mm breadboard compatible pins. Integrates 4.7K pull-up resistor on digital pin and capacitor on power supply for stable operation at 3.3-5V. Includes 3 DuPont female-female wires.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Adapter board compatible with the DS18B20 probe that simplifies the connection of this temperature probe with a microcontroller.
It offers the connection interface through pins with 2.54mm spacing and an easy connection by screw tightening the probe wires.
The board integrates a capacitor on the power supply and a pull-up resistor on the digital pin (of 4.7K), significantly facilitating the use of the probe.
The set includes the adapter module and 3 DuPont Mother-Mama wires. The DS18B20 probe is NOT included , it must be purchased separately.
Specifications:
Supply voltage: 3.3 - 5VDC (DS18B20 probe specifications)
Compatibility: DS18B20
Probe connection: screw terminal
Compatible Breadboard: Yes, 2.54mm spacing between pins
Pull-up resistor: Yes, integrated in the board
Dimensions mm: 24 x 21mm
