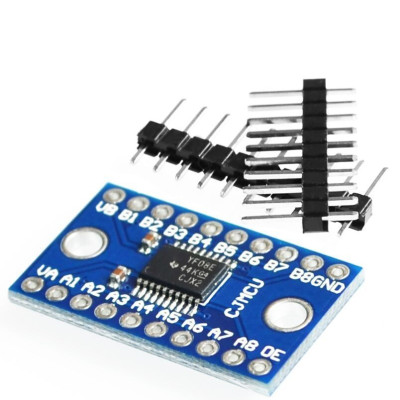

I2C IIC bidirectional logic level translator module 8 channels 3.3V 5V TXS0108E
8-channel bidirectional converter for fast interfacing between boards and sensors with different logic levels, automatically translates signals between 3.3V and 5V on I2C IIC or GPIO lines, operates without direction control, simple VCCA 3.3V, VCCB 5V and common GND connections, ideal for prototyping and stable integrations.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
8-channel bidirectional logic level converter from 3.3 to 5V and from 5 to 3.3V. CJMCU 0108.
It connects development boards and sensors operating at different logic levels by converting the signal from 3.3V to 5V and from 5V to 3.3V.
VCCA is connected to the 3.3V source
VCCB is connected to the 5V source
GND is connected common to both 3.3V and 5V sources
When Ax has a TTL 3.3V input, Bx has a TTL 5V output
When Bx has a TTL 5V input, Ax has a TTL 3.3V output
No direction control required
