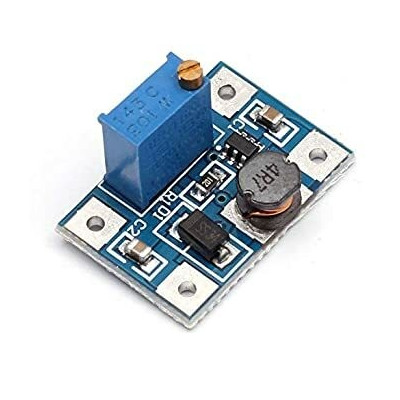

SX1308 Boost Module, 2-28V, 2A, 1.2MHz
zoom_out_map
chevron_left chevron_right

Product images are for informational purposes only and may vary slightly depending on the batch and supplier. Product specifications and prices may be subject to change without notice. We do our best to provide accurate and complete product specifications, but they may not be completely accurate. If you encounter any such situation, please let us know.

The product is intended for specialists and requires qualified and authorized personnel. The product does not include assembly/use instructions . Putting the product into operation by unqualified persons leads to the loss of the warranty according to the Terms and Conditions on the site.

The specified technical parameters (current, power, etc.) represent maximum allowable values under ideal operating conditions. For safe use and optimal lifespan, it is recommended to operate the product continuously at no more than 50% of the specified maximum values.

SX1308 Boost Module, 2-28V, 2A, 1.2MHz

Compact step-up DC-DC converter, ideal for powering electronic projects when you need a higher voltage, offers potentiometer-adjustable output between 2 and 28V from a 2-24V supply, delivers up to 2A depending on cooling and load, switches at 1.2MHz for good stability and can reach efficiency up to 95%.

0.72 € Tax included

0.59 € Tax excluded

(4/5) out of 10 total ratings
Read the reviews
1-2 zile
check In Stoc

Shipping by Thursday 27 August

Close

This product has a warranty of 2 years.

INTERNATIONAL DELIVERY
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
FAST DISPATCH 24H
We ship from our stock within 24H
LOYALTY POINTS
You earn points with every order, worth 5%.

Small-sized voltage boost module with adjustable output via potentiometer, uses the SX1308 integrated circuit.

IMPORTANT! On first use, turn the potentiometer several turns counterclockwise (at the end of the turn, a click is heard). It is possible that the potentiometer comes from the factory fully turned clockwise, and this will cause the module to burn out instantly.

Specifications:

Supply voltage: 2 - 24VDC

Output voltage: 2 - 28VDC

Output current: 2A, check the module's temperature under load

Frequency: 1.2MHz

Efficiency: up to 95%

33562
tension
AD
Supply Voltage
2
Maximum Input Voltage
24
Minimum Output Voltage
2
Maximum Output Voltage
28
Source Type
high
Current Adjustment
Not
Voltage Adjustment
Yes
Adjustment Type
Variable
Maximum Output Current
2
