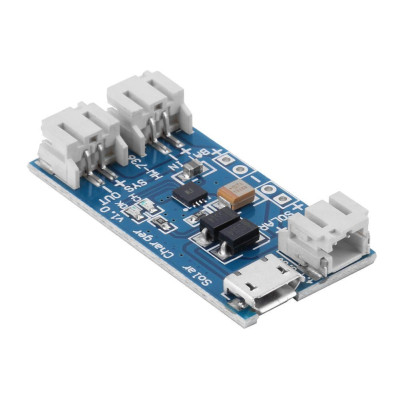

MPPT solar battery charging module, 3.7V, CN3065
zoom_out_map
chevron_left chevron_right

Product images are for informational purposes only and may vary slightly depending on the batch and supplier. Product specifications and prices may be subject to change without notice. We do our best to provide accurate and complete product specifications, but they may not be completely accurate. If you encounter any such situation, please let us know.

The product is intended for specialists and requires qualified and authorized personnel. The product does not include assembly/use instructions . Putting the product into operation by unqualified persons leads to the loss of the warranty according to the Terms and Conditions on the site.

The specified technical parameters (current, power, etc.) represent maximum allowable values under ideal operating conditions. For safe use and optimal lifespan, it is recommended to operate the product continuously at no more than 50% of the specified maximum values.

MPPT solar battery charging module, 3.7V, CN3065

Solar charging module for a 3.7V Li-Ion battery, ideal for 18650 cells, with MPPT management on CN3065. Accepts 4.4-6V panel input and charges up to 500mA, includes short circuit protection and LED status indicator, red when charging, green when charged. Quick connection via PH2.0, also supports 5V power supply, miniUSB may vary depending on the batch.

15.60 RON Tax included

12.89 RON Tax excluded

(4/5) out of 4 total ratings
Read the reviews
1-2 zile
check In Stoc

Shipping by Thursday 27 August

Close

This product has a warranty of 2 years.

INTERNATIONAL DELIVERY
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
FAST DISPATCH 24H
We ship from our stock within 24H
LOYALTY POINTS
You earn points with every order, worth 5%.

The module for solar charging of accumulators (example 18650) based on the integrated CN3065.

This solar charger can charge a single lithium battery with a maximum charging current of 500mA at an input voltage from the solar panel of up to 6V (minimum 4.4V).

Specifications:

Solar panel voltage: 4.4 - 6V

Maximum charging current: 500mA

Interface: connector PH2.0 mm, 2 pins, spacing 2 mm

Short circuit protection: yes

Battery status indicator: Red - Charging, Green - Charging

Support for 5V charging: Yes (the MiniUSB connector may or may not be present depending on the batch. If it is not present, there is a connector instead of the MIniUsb port)

9004

Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.

Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.

Avertismente generale de siguranta:

Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.

Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.

Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.

Nu lasati produsul alimentat nesupravegheat in timpul testelor.

Produsul nu este jucarie si nu este destinat copiilor.

Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.

Identificare produs:

Denumirea produsului, codul/SKU-ul si caracteristicile tehnice sunt mentionate in pagina produsului si/sau pe eticheta ambalajului.

Producator / Importator / Distribuitor:

Sigmanortec S.R.L.

Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania

E-mail: [email protected]

Website: www.sigmanortec.ro

Persoana responsabila in UE:

Sigmanortec S.R.L.

Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania

E-mail: [email protected]

Documentatie si siguranta:

Pentru informatii suplimentare, fise tehnice, declaratii de conformitate sau instructiuni, ne puteti contacta la [email protected].
