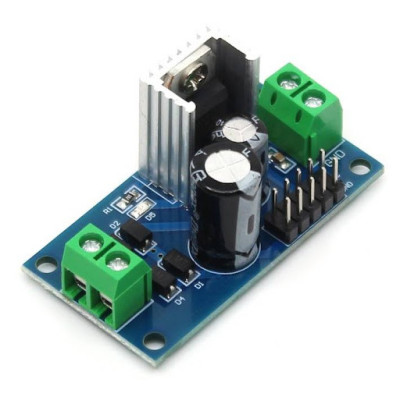

LM7805 voltage regulator module, 5V, 1.5A
Provides stable 5V power supply for electronic projects and industrial equipment, using the LM7805 regulator, accepts both DC 8-15V and AC 6-12V power supply without worrying about polarity thanks to the integrated 3A rectifier bridge, delivers up to 1.5A peak with low noise and good stability under load variations, compact 57x23mm format for quick integration.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Voltage regulator module with LM 7805 transistor (L7805).
The module incorporates a 3A full wave bridge rectifier and can be connected to both DC and AC without regard to polarity.
Specifications:
DC supply voltage: 8 - 15VDC
AC supply voltage: 6 - 12VAC
Output voltage: 5VDC
Load regulation: 100mV
Quiescent Current: 8mA
Output noise voltage: 42uV
Input and output dropout voltage: 2V
Output impedance: 15mΩ
Peak current: 1.5A
Output current: 1.2Ah Max
Transistor: LM7805
Dimensions mm: 57 x 23mm
Instructions:
Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.
Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.
Avertismente generale de siguranta:
Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.
Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.
Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.
Nu lasati produsul alimentat nesupravegheat in timpul testelor.
Produsul nu este jucarie si nu este destinat copiilor.
Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.
Identificare produs:
Denumirea produsului, codul/SKU-ul si caracteristicile tehnice sunt mentionate in pagina produsului si/sau pe eticheta ambalajului.
Producator / Importator / Distribuitor:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Website: www.sigmanortec.ro
Persoana responsabila in UE:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Documentatie si siguranta:
Pentru informatii suplimentare, fise tehnice, declaratii de conformitate sau instructiuni, ne puteti contacta la [email protected].
Reviews (4) - Review moderation
Un stabilizator bun pt cei care au nevoie de o tensiune stabila pt diferite proiecte..
Bun
Sursa liniara OK, ieftina si buna pt. un 5V stabilizat. Evident ca la o cadere de tensiune prea mare si la un curent de peste 1A se va incinge tare, dar la o intrare de 7...9V nu ar tb. sa fie probleme.
FOARTE BUN
