Resistive touch screen, 5.6inch , ST-05601, 5V

Resistive touch screen, ST-05601, compatible with Arduino and other development boards, which allows the creation of projects that require detecting the position on the surface of a screen, for example, to provide touch control. Being a resistive screen, it can be used with gloves, a pen or any other instrument, being able to detect touch with any object. This feature also makes it suitable for projects such as a ball balancing platform, where the position of the ball is controlled by tilting the platform with two servomotors.

The screen supports a supply voltage of 5VDC, being compatible with 5v logic.

Specifications:

Supply voltage: 5VDC

Model: ST‑05601

Screen type: resistive touch

Size: 5.6 inches / 125.5 x 98mm

Response time: <= 6 ms

Weight: 36g

Use:

Connect the signal cables to the device interface. Use the touch surface for navigation, applying moderate pressure.

Avoid direct exposure to liquids, excessive dust, or mechanical shock to extend the life of the screen.

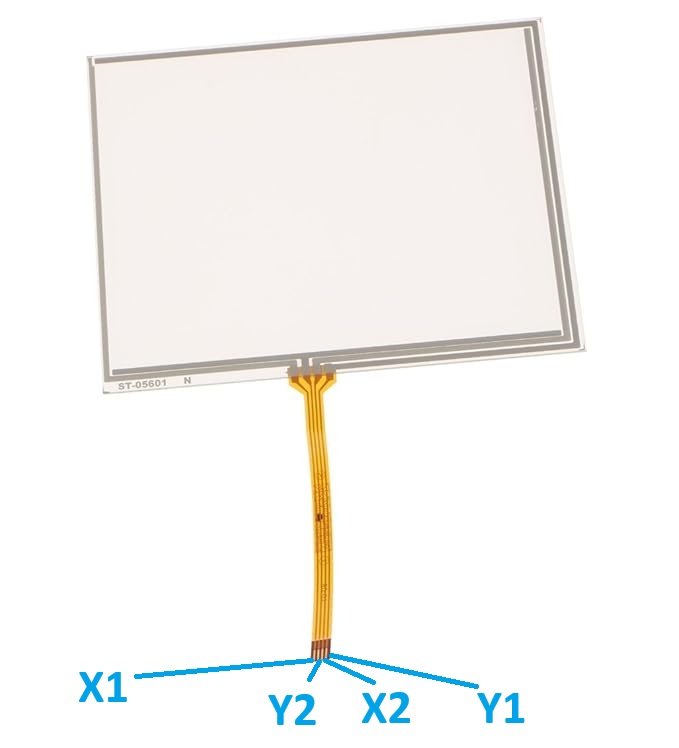

Example of connecting to Arduino:

Y1 - A0

X2 - A1

Y2 - A2

X1 - A3

Example code:

_______________________________________

int Y1 = A0;

int X2 = A1;

int Y2 = A2;

int X1 = A3;

void setup() {

Serial.begin(9600);

}

int readX(){

pinMode(X1, INPUT);

pinMode(X2, OUTPUT);

pinMode(Y2, INPUT);

pinMode(X1, OUTPUT);

digitalWrite(x2, LOW);

digitalWrite(x1, HIGH);

delay(5);

return analogRead(y1);

}

int readY(){

pinMode(y1, OUTPUT);

pinMode(x2, INPUT);

pinMode(y2, OUTPUT);

pinMode(x1, INPUT);

digitalWrite(y1, LOW);

digitalWrite(y2, HIGH);

delay(5);

return analogRead(x2);

}

void loop(){

int x = readX();

int y = readY();

Serial.print("x: ");

Serial.print(x);

Serial.print("y: ");

Serial.println(y-);

}

__________________________
