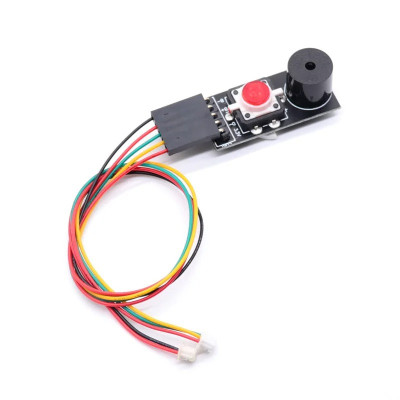

Active Buzzer Module with LED, for PixHawk PX4, alarm, 3.3V
The alarm module for Pixhawk PX4 with active buzzer and red LED, provides a loud audible warning and visual signal for low battery, failsafe or signal loss, helping to quickly locate the drone after an uncontrolled landing. It is powered by 3.3V, has a manual stop button, is compact and lightweight, and connects easily through the Buzzer and Switch interfaces.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Active buzzer for PixHawk, is an accessory designed specifically for FPV drones as an alarm module, designed to be compatible with the Pixhawk PX4 flight controller.
This module emits a clear and loud sound signal, alerting the pilot of critical situations such as low battery or loss of signal. The sound signal is also accompanied by a Red LED visual indicator present on the button. The sound and light signal is very useful especially in the event of an uncontrolled landing, significantly reducing the risk of permanently losing the drone and allowing for easier finding.
The button on the board allows the buzzer to be manually deactivated when not needed or when the aircraft has been found.
Specifications:
Supply voltage: 3.3V
Functions: Active buzzer, visual indicator
Compatibility: Pixhawk PX4
Dimensions: 15 x 38mm
Weight: 7g
Pinout:
| Pine | Marking on the module | Function | Description |
|---|---|---|---|
| 1 | B+ | Buzzer power supply (+5 V) | Positive input for buzzer (supply voltage) |
| 2 | B- | Buzzer signal (control) | The signal pin sent from the flight controller to activate the buzzer |
| 3 | – | GND | Common ground for the module |
| 4 | D | LED signal (visual indicator) | Controls the warning LED or indicator light |
| 5 | 3.3 | LED/logic power supply | Logic power supply for LED and button circuit (3.3 V from Pixhawk) |
Use:
Use the connector included in the package to connect the module to the control board, using the Buzzer and Switch interfaces.
