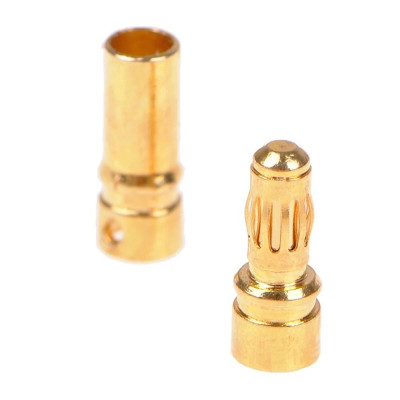

Pair of banana connectors, 3.5mm , Gold Plated
Gold-plated 3.5mm banana plugs for secure and efficient connections between battery, ESC and motor in RC applications. The gold layer provides high conductivity and low resistance to current, supporting up to 50A continuous. Compatible with up to 12AWG wire and easy to solder, the set includes male and female for quick and reliable connection.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Gold-plated 3.5mm banana plugs are ideal for ensuring a stable and efficient connection between the battery and RC vehicle components, such as motors. Due to the gold coating, these connectors offer superior conductivity and minimal resistance to current, making them perfect for high-power applications.
The connectors support the connection of a cable with a maximum conductor diameter of less than 3.5mm , usually 12AWG.
Specifications:
Connector type: Banana
Diameter: 3.5mm
Compatible Wire: 12AWG
Current: 50A continuous
Material: Gold-plated brass for conductivity and corrosion resistance
Compatibility: Batteries and RC equipment
Set: Includes Male and Female connector
Applications: RC electrical systems, including cars, drones and boats, ESC and Motor
Use:
Cut the cable insulation to the appropriate size to expose the wires.
Solder the copper wires to the connector terminals using a Letcon. Make sure the solder is solid for a secure connection.
Insert heat shrink tubing over the bonded areas for additional protection. Heat the tubing until it adheres perfectly.
Attach the male and female connectors to the corresponding components of the battery or controller. Check that the connection is firm.
