Holybro radio telemetry set, 433mhz, 100mW
433MHz, 100mW radio telemetry set, for stable bidirectional communication between the drone and the ground station, plug and play compatible with Pixhawk Standard and other controllers. Runs SiK open source firmware optimized for MAVLink, easily integrates with Mission Planner, Ardupilot, QGroundControl and PX4, offers full duplex link with FHSS and error correction, with a range of over 300 m out of the box.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Holybro SiK telemetry set that operates at a frequency of 433MHz, with a maximum power of 100mW. This is an open-source, compact and lightweight radio platform that facilitates bidirectional communication between the drone's autopilot and the base station on the ground. It offers a plug-and-play connection for compatible Pixhawk Standard flight controllers and other types of controllers, being easy to configure for remote monitoring and control.
The module uses SiK open-source firmware, specially designed to work efficiently with MAVLink packages and to integrate perfectly with software such as Mission Planner, Ardupilot, QGroundControl and PX4 Autopilot.
It has a maximum output power of 100 mW and a reception sensitivity of -117 dBm, this telemetry set allows a range of over 300 meters "out of the box", and with a patch antenna, this distance can be significantly extended .
Features:
SiK open-source firmware
Plug-and-play compatible with Pixhawk Standard flight controllers
Easy connection between the autopilot and the ground station
Interchangeable radio for air and ground
Micro-USB port with Type-C adapter included
JST-GH 6-pin connector for Pixhawk and other controllers
Bidirectional full-duplex communication through adaptive UART TDM
Support for MAVLink protocol and frequency spectrum FHSS (Frequency Hopping Spread Spectrum)
Error correction for up to 25% of bit errors
Specifications:
Supply voltage: 5V DC (via USB or JST-GH)
Transmission current: 100 mA at 20 dBm
Current in reception: 25 mA
Maximum output power: 100 mW (adjustable)
Reception sensitivity: -117 dBm
RP-SMA connector for antenna
Serial interface: 3.3 V UART
Dimensions: 28 x 53 x 10.7 mm (without antenna)
Weight: 20.7 g (433MHz version)

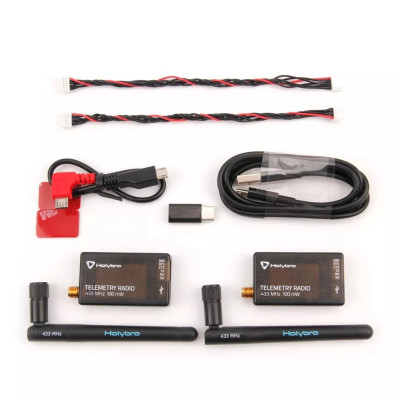

Package Contents:
2 x Radio modules with antennas (433MHz)
1 x Micro-USB to USB-A Cable
1 x Micro-USB to Micro-USB OTG Adapter
1 x Micro-USB to Type-C Adapter
1 x JST-GH-6P to JST-GH-6P Cable (for Pixhawk Standard)
1 x JST-GH-6P to Molex DF13 6P Cable (for Pix32, Pixhawk 2.4.6, etc.)
