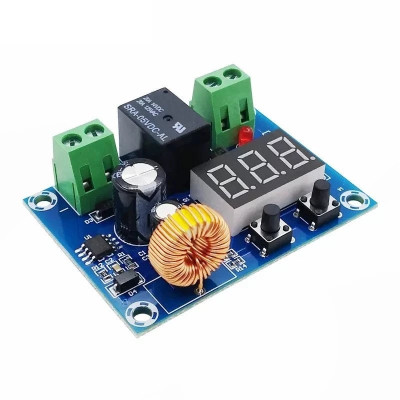

XH-M609 module, low voltage disconnect, 7-50V
The XH-M609 module ensures automatic disconnection of the consumer at low voltage, protecting the battery against excessive discharge, operates between 7 and 50VDC, the disconnection and reconnection thresholds are easily programmable in 0.1V steps, the display indicates the voltage in real time, the 20A relay switches the load and the LED confirms the operating status.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Low voltage consumer disconnection module, XH-M609, which can operate at voltages between 7 and 50VDC.
This module is used to protect the battery from discharge when the supply voltage drops below the set level. The circuit restarts when the input voltage reaches the set threshold.
The display shows the input voltage in real time and the integrated LED lights up and remains lit as long as the relay is activated and the consumer is switched on. The LED goes out to signal the relay is off and the circuit is broken.
Important: The module does not stop when the circuit is broken. It still displays the input voltage, which means that there is a constant consumption between 0.2W and 0.5W, depending on the supply voltage. In the long term, depending on the capacity of the battery, it will discharge continuously (for a 12V battery the consumption is about 0.03A).
Use:
- Connect the battery to VIN+ and VIN-, the module displays the battery voltage.
- Double-press the Left button quickly to change the relay cut-off voltage. Use the two buttons to change the value. Short press for changes in 0.1V steps, long press for changes in 1.0V steps.
- Long press the Right button to change the reconnection voltage. This value is expressed in the set value for the fuse plus the set value. Use the two buttons to change the value. Short press for changes in 0.1V steps, long press for changes in 1.0V steps.
Example: You want to disconnect the consumer at 11V in the battery and reconnect it at a voltage of 13V in the battery. Press the Left button briefly twice and set the value 11.0. Wait for the real voltage to return to the display. Press and hold the Right button and set the value 2.0. When the battery voltage drops to 11V, the relay is turned off. When the voltage rises to 13V (11+2) the relay is activated. This cycle is repeated continuously.
Specifications:
Supply voltage: 6 - 50VDC
Output voltage: equal to input voltage
Standby consumption: 0.2 - 0.5W (lower consumption at lower voltage)
Operating consumption (activated): 1 - 2W (lower consumption at lower voltage)
Model: XH-M609
Control resolution: 0.1
Maximum settable voltages: 6 - 50VDC
Offset range: 0.1 - 10VDC
Maximum relay specifications: 20A at 14VDC, 20A at 125VAC
Dimensions mm: 57 x 42 x 19mm
Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.
Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.
Avertismente generale de siguranta:
Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.
Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.
Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.
Nu lasati produsul alimentat nesupravegheat in timpul testelor.
Produsul nu este jucarie si nu este destinat copiilor.
Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.
Identificare produs:
Denumirea produsului, codul/SKU-ul si caracteristicile tehnice sunt mentionate in pagina produsului si/sau pe eticheta ambalajului.
Producator / Importator / Distribuitor:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Website: www.sigmanortec.ro
Persoana responsabila in UE:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Documentatie si siguranta:
Pentru informatii suplimentare, fise tehnice, declaratii de conformitate sau instructiuni, ne puteti contacta la [email protected].
Reviews (4) - Review moderation
Un lucru bun este că odată setata sau programată kiar dacă se scoate sursa de tensiune de tot ,acest modul rămâne setat sau programat la valoarea setată de utilizator ceea ce e pentru mine Este un lucru foarte bun
Foarte placut impresionata de seriozitatea si promptitudinea lor. Am facut comanda online ieri in jurul orelor 12,00 si la orele 16,00, in aceeasi zi, am fost instiintata ca deja fusese preluata comanda de catre curier. Azi am primit produsele . A fost una din cele mai rapide procesari ale unei comenzi online pe care am facut-o vreodata .
Instructiuniile din descriere pentru setarea parametrilor nu corespund cu modul real de functionare. Apasarea lunga a butonului din stanga este pentru calibrarea tensiunii de intrare. Pentru setarea valorilor de deconectare/reconectare se face dublu click pe buton stanga, respectiv dreapta. Video instructiuni: https://www.youtube.com/watchav=d9RD0Iao58A
