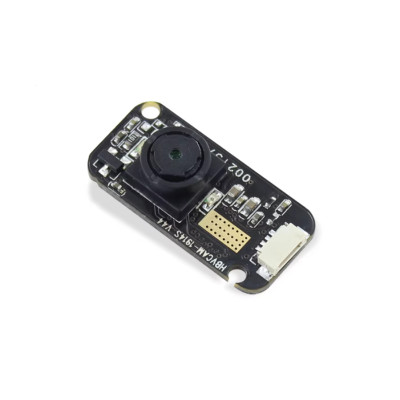

IR Camera Module, GC0308, 0.3MP, Plug-and-Play, USB 5V
Compact IR camera module for clear close-range captures, ideal for IoT applications, access control, or QR scanning. It offers VGA 0.3MP image quality with an 80-degree angle, up to 120 fps for smooth streaming, 850 nm IR LEDs for night vision, and USB 5V plug-and-play UVC connectivity, compatible with Windows, Linux, macOS, Android, and Raspberry Pi.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The GC0308-Camera module is a compact and high-performance solution, designed for applications that require close-range image capture and operation in low-light conditions or even total darkness.
With a resolution of 0.3 megapixels (VGA, 320 x 240 pixels) and an 80° viewing angle, the module integrates a macro lens with 4 optical elements (F/No 2.8, EFL 2.6 mm), 850 nm IR LEDs for night visibility, and a dedicated optical filter for rendering black-and-white images in darkness. A frame rate of up to 120 fps makes it suitable for real-time applications where image fluidity is essential.
The module is ideal for access control systems with facial recognition, QR code readers, baby monitoring devices, and portable IoT devices. The USB 2.0 interface with UVC (USB Video Class) support allows plug-and-play use on Windows, Linux, macOS, and Android 4.0+, without installing additional drivers.
Thanks to its reduced dimensions (25 x 12 x 6 mm), low power consumption (under 500 mW), and wide operating temperature range (-30 ~ 70°C), the module can be easily integrated into embedded projects or any system with a USB Host port.
Specifications:
Model: GC0308
Maximum resolution: 320 x 240 pixels (VGA)
Frames per second: 120 fps
Viewing angle: 80°
Lens: 4 elements, F/No 2.8, EFL 2.6 mm
Night vision: built-in 850 nm IR LEDs
Interface: USB 2.0 (integrated cable with USB-A connector)
Power supply: 5V via USB port
Consumption: < 500 mW
Output format: YUY2 / MJPEG
Operating temperature: -30 ~ 70°C
Dimensions: 25 x 12 x 6 mm
Compatibility: Windows, Linux, macOS, Android 4.0+, Raspberry Pi
Usage:
Insert the module’s USB-A plug into a free USB port on the computer or on the board with USB Host support.
Wait for the device to be automatically detected. On systems with UVC support (Windows, Linux, macOS, Android 4.0+), the camera is recognized without additional drivers.
Open a camera-compatible application (e.g. Camera in Windows, Cheese on Linux, or any application that accesses video devices).
Select the GC0308 camera from the list of available devices, if multiple cameras are connected.
For use in darkness, the IR LEDs activate automatically when ambient light is insufficient.
On Linux, you can check the module detection with the command v4l2-ctl --list-devices in the terminal.
In OpenCV or Python applications (on Raspberry Pi or PC), access the camera using the corresponding index (e.g. cv2.VideoCapture(0)).

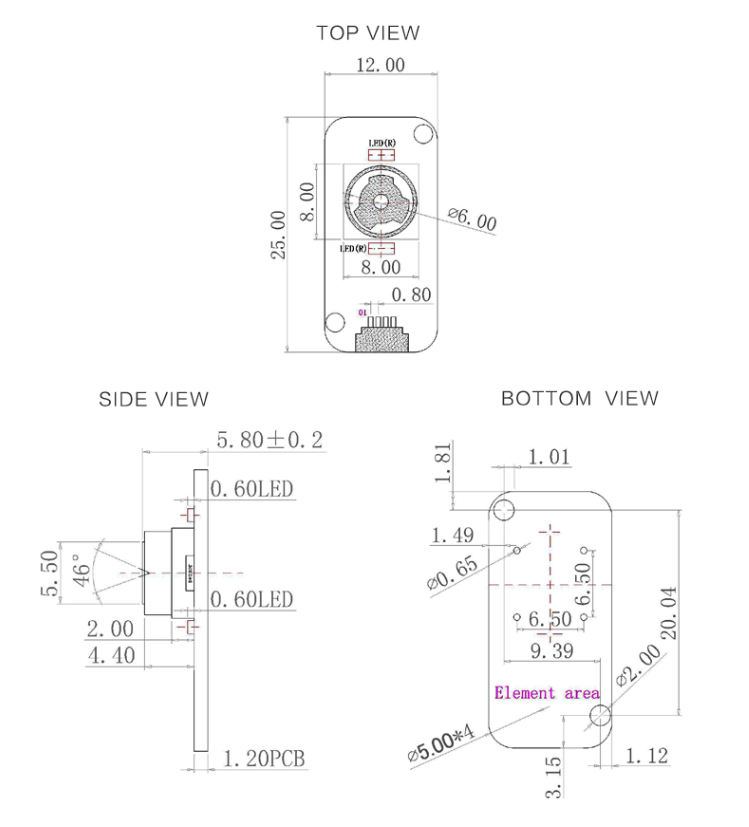

Dimensions diagram:
Package Contents:
1x IR Camera Module
1x USB-A Cable
