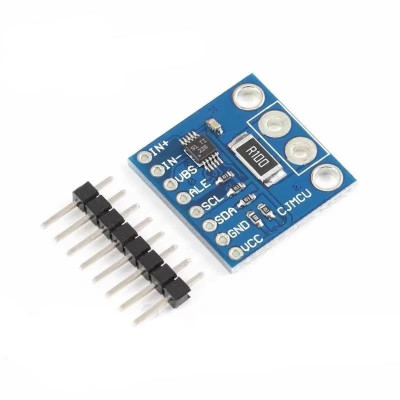

Current and power monitor sensor, INA226, I2C, IIC, Bidirectional, 16Bit, 2.7-5.5V
Module for precise current and power monitoring in Arduino projects and other boards, measures bidirectionally on high-side or low-side, reads current, voltage and power via I2C/SMBus, supports 0-36V bus voltage independent of 2.7-5.5V supply, 16 bit resolution with calibration, averaging and programmable alert, up to 16 I2C addresses.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The INA226 module, compatible with Arduino and other development boards, is a current and power monitor that includes a shunt for voltage measurement and an I2C or SMBUS compatible interface. This device monitors both the voltage drop across the shunt and the bus supply voltage. Programmable calibration value, conversion times and averaging options, combined with an internal multiplier, allow direct reading of current in amps and power in watts.
The INA226 module senses current on common bus voltages that can range from 0 V to 36 V, independent of supply voltage. The device operates from a single 2.7 V to 5.5 V supply, consuming 330 μA of supply current typically. The device is specified for an operating temperature range of -40°C to 125°C and offers up to 16 programmable addresses over the I2C-compatible interface.
Specifications:
Supply voltage: 2.7 - 5.5VDC
Bus Voltage Monitoring: 0 - 36VDC
Sensitivity: Both on the upper side (High-Side) and on the lower side (Low-Side)
Reporting: Current, voltage and power
Measured current: 0.8A (with resistor R100)
Gain error: maximum 0.1%
Maximum offset: 10 μV
Mediation Options: Configurable
Programmable Addresses: 16
Description of the Pines:
VBUS : Bus voltage input
SDA/SCL : Data and clock lines for the IIC bus
ALERT : Multifunctional alarm output
A0/A1 : IIC address lines
IN+/IN- : Non-inverting analog input, inverting analog input
Scheme:
