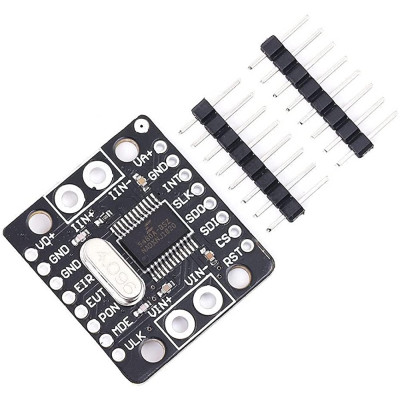

Power sensor, bidirectional, serial communication, ADC, CS5460A
Bidirectional power measurement module with Delta Sigma ADC, ideal for AC energy monitoring, calculates active and instantaneous power, IRMS and VRMS, offers high accuracy of +/-0.1%, operates at 3-5V and communicates serially over 3 wires with Arduino and other boards. Supports auto-boot with external EEPROM for autonomous operation at startup.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
CS5460A multifunctional 3-5V bi-directional analog-digital converter, compatible with Arduino and other development boards.
The CS5460A module is a high-speed Delta-Sigma bidirectional analog-to-digital converter (ADC) and a high-precision serial interface adapter. (+/- 0.1%).
It can be used in applications for measuring and calculating active energy, instantaneous power, IRMS and VRMS, for alternating current installations. The current is measured using a transformer or a transformer. The voltage is measured with a voltage divider resistor or a voltage transformer.
In auto-start mode, the CS5460A reads the calibration profile from an external EEPROM according to the start-up instruction.
The "Auto-Boot" feature allows the module to run independently and initialize itself at system startup. In this mode, the CS5460A can operate without the need for a microprocessor (for low-cost measurement applications).
Specifications:
Supply voltage: 3 - 5VDC
Working temperature: -20 - 65℃
Maximum consumption: 12mW
Accuracy: +/- 0.1%
Dimensions mm: 50 x 32mm
Functions:
Auto-boot (requires external EEPROM)
IRMS, VRMS measurement
Energy source monitoring
Step counter stepper motor
Voltage reference of 2.5V
Serial communication with 3 wires
