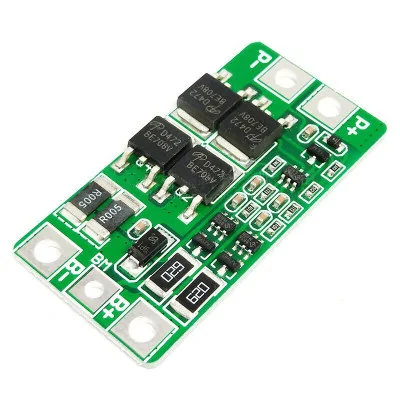

BMS module, LiFePo4, 2S, 10A, with Balance
The BMS module for LiFePO4 2S packs, ideal for 2 3.2V cells, ensures safe charging and discharging up to 10A, with cell balancing. It offers short circuit, overcharge and undervoltage protection, has very low static consumption and operates stably between -40 and +50°C, in a compact format easy to integrate into technical projects.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
LiFePO4 battery charging protection module, type BMS (Battery Management System) for cells with a nominal voltage of 3.2V (3.65V charged). Ideal for batteries composed of 2 cells.
This module is equipped with short circuit and overload protection.
Specifications:
Model: HX-2S-D01
Charging voltage: 7.2V DC
Maximum operating current: 10A
Maximum current for a short period: 20A
Protections: Short circuit and overcharge.
Low voltage protection: 2.0 with return to 2.5V
High voltage protection: 3.65V
Static current: <10 uA
Operating temperature: -40 ~ +50°C
Resistance: <300mΩ
Dimensions: 47x24x3.5mm

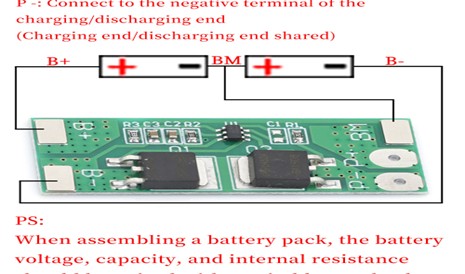

Battery connection mode:
- Technology
- LiFePo4
- Load voltage
- sway
- Yes
- Nominal Current
- Number of cells
- 2S
