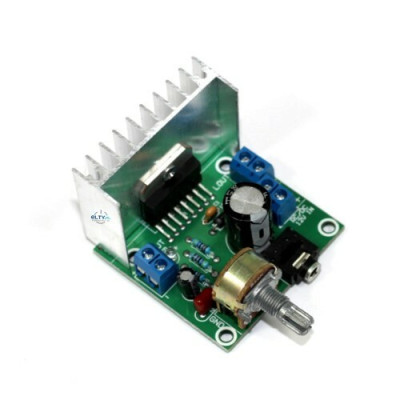

Audio amplifier TDA7297, 2x15W, 12V
Compact stereo amplifier for DIY projects and home audio systems, offers 2x15W at 12V power supply, operates on the 6-18V DC range, drives 4-8 ohm speakers, ensures clear sound with a signal to noise ratio over 98dB and distortions below 0.1%, is easy to mount thanks to its small dimensions of 29x33mm.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The TDA7297 audio amplifier is an integrated circuit with two class AB power amplifiers, designed to deliver an output power of 15W per channel. It can be powered with a 12V voltage and is ideal for home audio applications as well as DIY projects.
This TDA7297 audio amplifier has a wide supply voltage range, from 6V to 18V DC, but a 12V DC voltage is recommended to achieve optimal performance. The amplifier's output power is 2x15W, which means it can easily drive speakers with an impedance of 4-8 ohms.
A high signal-to-noise ratio and low total harmonic distortion ensure excellent sound quality, making this amplifier suitable for high-fidelity audio projects. Also, the small size allows easy mounting in small enclosures.
Specifications:
Amplifier type: class AB
Supply voltage: 6-18V DC (recommended 12V DC)
Output power: 2x15W
Output impedance: 4-8 ohms
Signal-to-noise ratio: > 98dB
Total harmonic distortion: < 0.1%
Dimensions: 29 x 33mm
- Type
- Amplifier
- tension
- AD
- Power
- 0 - 20W
Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.
Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.
Avertismente generale de siguranta:
Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.
Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.
Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.
Nu lasati produsul alimentat nesupravegheat in timpul testelor.
Produsul nu este jucarie si nu este destinat copiilor.
Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.
Identificare produs:
Denumirea produsului, codul/SKU-ul si caracteristicile tehnice sunt mentionate in pagina produsului si/sau pe eticheta ambalajului.
Producator / Importator / Distribuitor:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Website: www.sigmanortec.ro
Persoana responsabila in UE:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Documentatie si siguranta:
Pentru informatii suplimentare, fise tehnice, declaratii de conformitate sau instructiuni, ne puteti contacta la [email protected].
Reviews (6) - Review moderation
Multumit de toate produsele si de promptitudine.
Se poate folosi cu 4 acumulator 18650a .se aude bine alimentat la un incarcator de 12v. Multumesc
Se aude fain, curat. Alimentat la 15V 6A pe 4ohm este mai mult decat decent si un radiator foarte mare(custom) unde sa se disipe caldura + pasta termica MX4 aplicata. *Este peste PAM8610, unde intervine un sfarait pe inalte si alte interferente.
Micua,dragua
este un modul excelent pentru incepatori care nu au inca experienta de a monta un CI.
