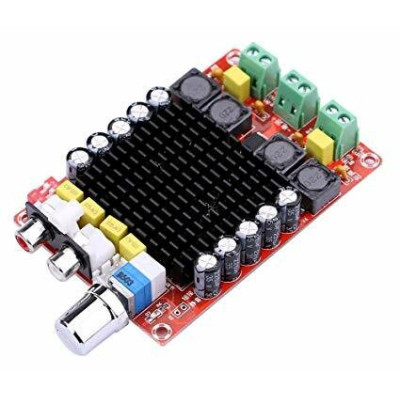

2x100W TDA7498 amplifier module
Dual BTL class D amplifier for home theater and active speakers, delivers up to 2x100W with high efficiency and low heat. Operates at 15-34VDC, recommended 24V, has 4 selectable gain stages, short-circuit and overtemperature protections, plus Normal, Stand-by and Mute modes for easy operation control.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The TDA7498 module is a class D amplifier, with dual-BTL 100W+100W output, single power supply, designed for home theater and active speaker applications.
Important: Using the amplifier with 4-ohm speakers can cause it to burn out. If you still want to use 4-ohm speakers, use the lowest possible voltage and be careful about the amplifier overheating. If necessary, use active cooling by applying a fan to the heatsink. Burning the module by using speakers with a value other than 8 ohms voids the warranty.
Specifications:
Amplifier chip: TDA7498
Output power: 100W + 100W (Vcc = 36 V, RL = 6Ω, THD: 10%)
Output power: 80W + 80W (Vcc = 34 V, RL = 8Ω, THD: 10%)
Power supply voltage: 15 - 34VDC (recommended 24V)
Speaker impedance: 8 ohms recommended (using 4-ohm speakers can cause amplifier burnout)
4 fixed gain values: 25.6dB, 31.6dB, 35.1dB, and 37.6dB
Protection: short circuit and temperature
Functions: Normal, Stand-by, and Mute. Set by shorting the pins shown in the picture below
Standby: circuits off, low power consumption mode
Mute: all signals connected to ground
Normal
Alternative audio input with 3 wires (3 pin audio input): Middle GND, outer pins L and R
- Type
- Amplifier
- tension
- AD
- Power
- Over 20W
