Speaker protection module, delayed start, 12-15VAC, stereo
Stereo speaker protection module with delayed start, reduces pops at start by delaying approximately 3 seconds and disconnects at the appearance of DC voltage of approximately 1V. It uses a robust 15A relay, is compatible with most amplifiers and offers clear monitoring via status LED. Separate power supply 12-15VAC, compact dimensions 65x40mm.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.

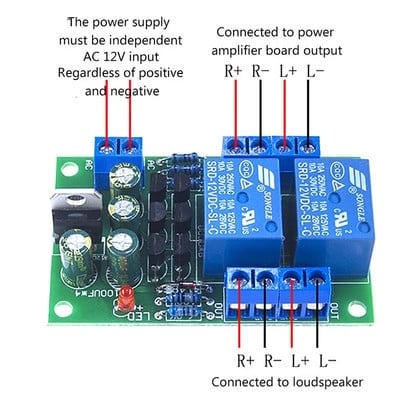

Dual-channel speaker protection board, providing a power-on delay of approximately 3 seconds and protection against excessive DC voltage (detecting a control voltage of approximately 1V). It uses a 15A relay, being compatible with most amplifier boards, ensuring safe and reliable operation. The status LED indicates the moment of protection and switches to normal operation mode after power-on.
The board operates on a dual circuit and REQUIRES an independent 12-15V AC power supply!
For use in BTL circuits it is necessary to use two modules per channel.
Specifications:
Supply voltage: AC 12-15V (independent power supply)
Main functions: Power-on delay (~3 seconds), DC protection (1V)
Relay: 15A
Channels: Dual channel, R and L
BTL Compatibility: Requires the use of two sets for BTL circuits
Power supply: Requires independent winding, cannot share power with other circuits
Dimensions: 65 × 40mm
Use:
The package contains:
1 x DIY Stereo Speaker Protection Board Kit
Depending on the batch, the board may come assembled or as a DIY Kit. It is usually assembled, but it is recommended to contact us before ordering to check.
