Product images are for informational purposes only and may vary slightly depending on the batch and supplier. Product specifications and prices may be subject to change without notice. We do our best to provide accurate and complete product specifications, but they may not be completely accurate. If you encounter any such situation, please let us know.
The product is intended for specialists and requires qualified and authorized personnel. The product does not include assembly/use instructions . Putting the product into operation by unqualified persons leads to the loss of the warranty according to the Terms and Conditions on the site.
The specified technical parameters (current, power, etc.) represent maximum allowable values under ideal operating conditions. For safe use and optimal lifespan, it is recommended to operate the product continuously at no more than 50% of the specified maximum values.

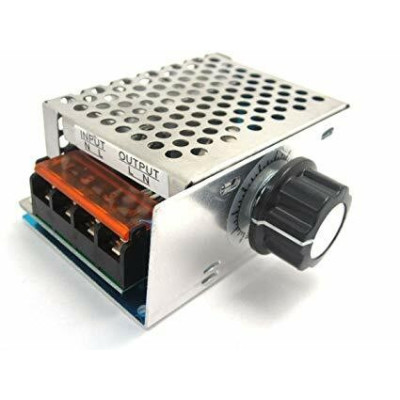

Voltage and speed regulator SCR 4000W, 220VAC
Continuously regulates voltage and implicitly speed for universal motors, resistors, heaters or lighting, 220V AC power supply with adjustable output 10-220V. SCR module with double insulation and aluminum housing for heat dissipation and safety, supports up to 4000W on resistive loads, includes anti-spike and surge protections for stable operation.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Double-insulated module and aluminum housing for safety
It can be used as an adjustable voltage source and for any application that requires output voltage regulation.
Connect a consumer before putting the module into operation. At room temperature, the maximum power is 2000W.
For inductive or capacitive loads, the maximum supported power is reduced by half.
IMPORTANT! IGNORE the markings on the housing! The housing is used on several versions of the regulators and may have an incorrect connection diagram. To determine the input and output, we recommend opening the housing and inspecting the circuit. The input is recommended on the terminal connected directly to the glass fuse. If the fuse is connected on terminal 3, use 3 and 4 for input, 1 and 2 for output.
The metal housing is produced by pressing and bending. It may be more or less deformed (the grid segment), which does not affect the operation of the module in any way. Please consider this before placing your order. A bent housing is not a reason for return.
Operating voltage: 220V AC
Type: Voltage regulator
Maximum power: 4000W, resistive loads
Voltage adjustment: between 10V and 220V
Protection: Anti-spike, Surge, RC absorption (EOC)
Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.
Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.
Avertismente generale de siguranta:
Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.
Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.
Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.
Nu lasati produsul alimentat nesupravegheat in timpul testelor.
Produsul nu este jucarie si nu este destinat copiilor.
Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.
Identificare produs:
Denumirea produsului, codul/SKU-ul si caracteristicile tehnice sunt mentionate in pagina produsului si/sau pe eticheta ambalajului.
Producator / Importator / Distribuitor:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Website: www.sigmanortec.ro
Persoana responsabila in UE:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Documentatie si siguranta:
Pentru informatii suplimentare, fise tehnice, declaratii de conformitate sau instructiuni, ne puteti contacta la [email protected].
Reviews (25) - Review moderation
Am dorit sa imi creez acasa la hota o treapta de viteza variabila (un fel de standby cu zgomot minim) si cu indrumarea tehnicului de la Sigmanortec am acizitionat produsul asta. Isi face treaba exact asa cum mi-am dorit.
Din cate am comandar unul a venit fara siguranta. Toate s-au stricat in incercarea de a-l cupla intre sursa de 220 V si redresorul pentru cc si in final un motor monofazic de curent continuu de 48 V si 1000 W.
Nu functioneaza cu orice motor
Siguranaa interna necalibrata cu puterea maxima
Regulatorul merge bine pe becuri, motoare ansa nu si pe aparate electronice care au transformator deoarece se modifica si frecventa odata cu tensiunea.
