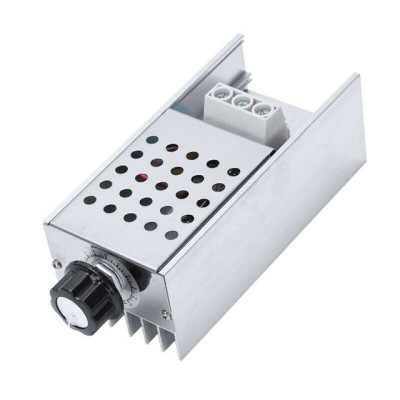

Voltage regulator, SCR, 220VAC, 6000W

Efficiently controls power on resistive loads and adjusts the speed of single-phase motors, 220VAC power supply with fine adjustment 10-220VAC from the potentiometer, maximum power 6000W and up to 3000W in continuous use, efficiency approximately 90%, robust construction with metal casing and SCR electronics for high currents.

12.00 € Tax included

9.92 € Tax excluded

(5/5) out of 4 total ratings
Read the reviews
1-2 zile
check In Stoc

Shipping by Thursday 27 August

Close

This product has a warranty of 2 years.

INTERNATIONAL DELIVERY
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
FAST DISPATCH 24H
We ship from our stock within 24H
LOYALTY POINTS
You earn points with every order, worth 5%.

SCR voltage variator with a maximum power of up to 6000w, which uses a bidirectional power thyristor that can reach a current of up to 100A. It is usually used to vary the speed of single-phase motors (operation with all motors is not guaranteed) or to resistive loads (resistive, etc...).

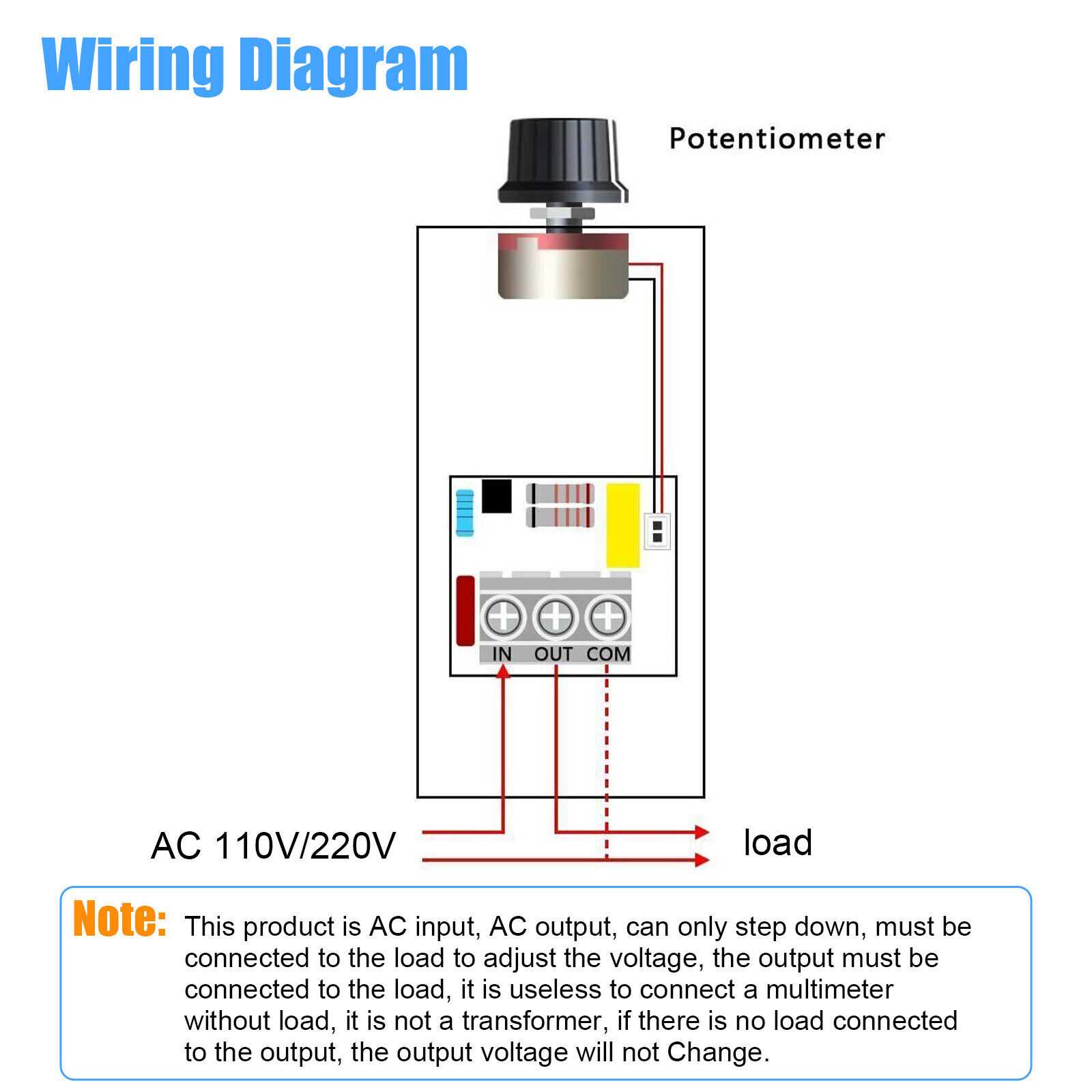

The variator needs to be connected to the consumer to work, otherwise, not connected, the voltage does not vary. It is not a transformer. It does not work with economical bulbs or with inductive loads.



Specifications:

Supply voltage: 220VAC

Power: 6000W maximum, 3000W in constant use

Load type: Resistive

Voltage adjustment range: 10 - 220VAC

Housing: Metal

SCR: 41A

PCB: 1.6mm FR-4

Adjustment: Potentiometer

Efficiency: 90% approximately

Dimensions mm: 136 x 47mm

Potentiometer shaft diameter: 6mm
