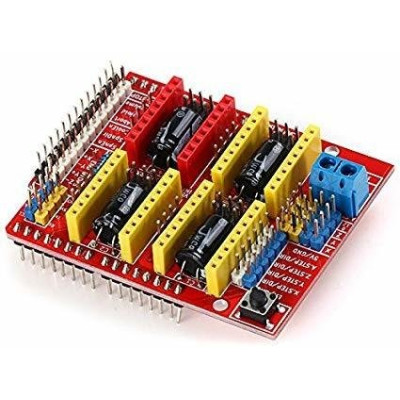

CNC Shield v3 Arduino UNO
The CNC Shield v3 for Arduino UNO is the practical base for controlling a CNC or 3D printer, offering 4 slots for A4988 or DRV8825 drivers, 12-36V power supply and dedicated pins for motors, limit switches and peripherals. It allows setting microstepping via jumpers and works great with GRBL firmware for precise automation projects.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Shield for the Arduino UNO development board, ideal for controlling a CNC or 3D printers.
4 slots available for drivers as well as connection pins for motors, travel limiters and other peripherals.
Make sure the correct installation direction of the drivers (reference the EN pin on the board with the Enable pin on the driver
Specifications
Supply voltage: 12 - 36V
Driver slots: 4
Compatible with A4988 and DRV8825 drivers
Jumper configuration depending on the driver used:
1 represents the presence of the jumper.
To create a CNC with this shield, we recommend using the GRBL code available in the following tutorial: CNC Tutorial with Uno and CNC shield
GitHub code:GRBL code in .zip format for Arduino IDE
CNC milling software for PC: GRBLcontrol
Laser CNC operation software: GRBL Laser
