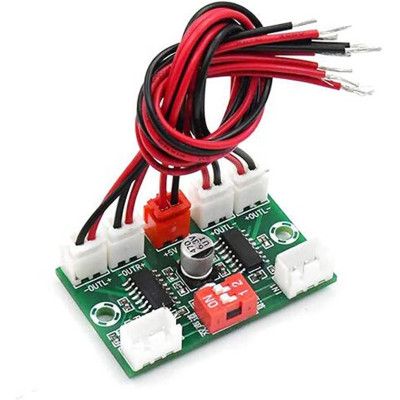

4-channel audio amplifier module, 4x3W, XH-A156, 5V
Mini 4-channel audio amplifier, ideal for DIY projects and compact systems such as computer or car speakers. It operates at 5V and offers up to 4x3W at 4-8 ohms, with clear sound and a signal to noise ratio of up to 90dB. It has dual L/R input on two 3-wire jacks, allowing two separate sources or a 4-channel source, small size for easy integration.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The PAM8403 module is a four-channel miniaturized digital audio amplifier that can be used in DIY projects to create a small audio system. It can be powered with a voltage of 5VDC, which makes it suitable for a wide range of applications, including computer speakers, car audio systems and other devices that require sound amplification.

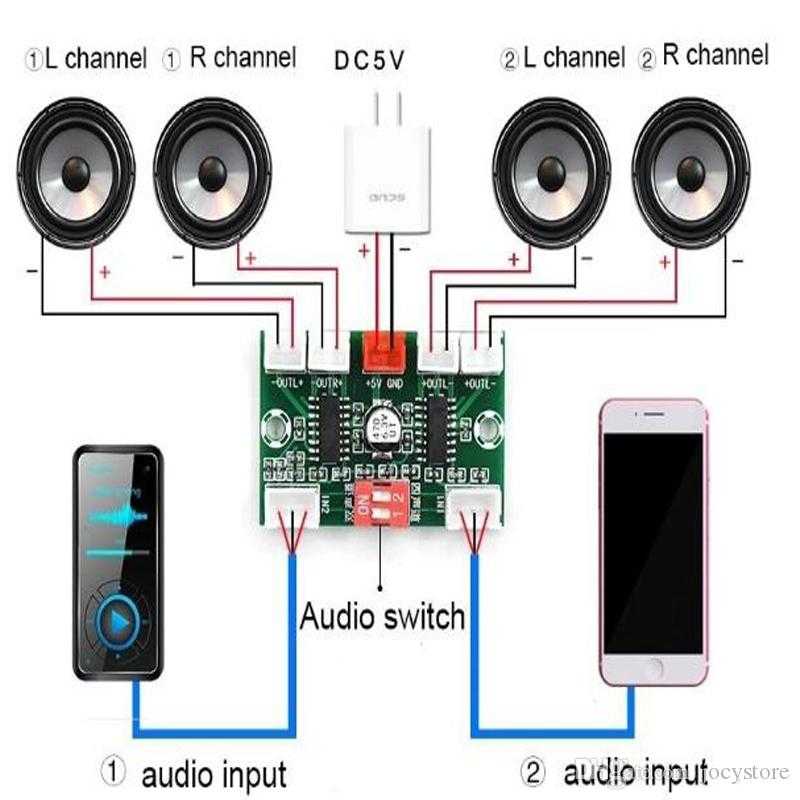

It presents dual input with two ports of 3 wires each (2 x GND, L and R). It can use two totally separate audio sources with separate content playback for each input or a 4-channel audio source.
Specifications:
Supply voltage: 5VDC
Model: XH-A156
Output power: 4 x 3W
Output ways: 4 channels
Output impedance: 4-8 ohms
Signal/noise ratio: up to 90dB
Dimensions: 46 x 29 x 13mm
