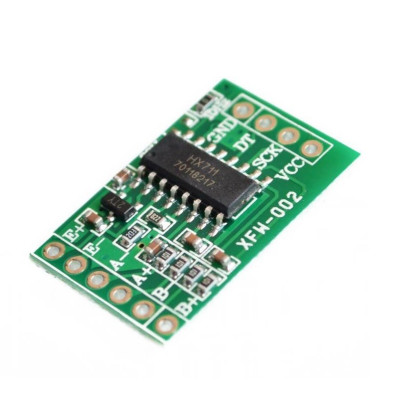

Weight reading module, HX711, 24AD, 2 channels, 3-5V
Module for reading load cells, ideal for DIY scales and automation, compatible with Arduino and other boards. Allows the connection of up to two load cells, converts the signal to 24 bits for precise measurements, communicates simply on two SCK and DT wires, operates at 2.7-5.5V with low consumption of approximately 10mA, compact format 37x21mm.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
HX711 module, compatible with Arduino and other development boards, used for communication with up to two load cells.
The module communicates on 24 Bits through a two-wire protocol, SCK (Clock) and DT (Data).
Specifications:
Supply voltage: 2.7 - 5.5VDC
Total current: 10mA
ADC resolution: 24 bit
Channels: 2
Input: Differential
Dimensions mm: 37 x 21mm
Example of connecting 4 cells:
