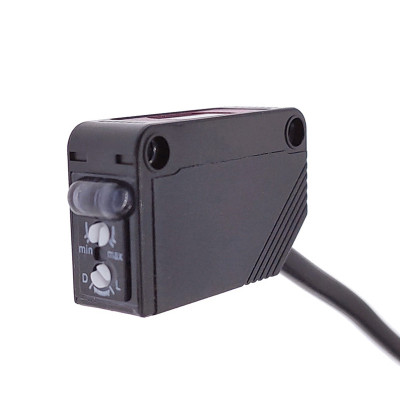

Proximity Sensor, Omron, E3Z-D62, Digital, 12-24V, NPN
Reflective proximity sensor for precise object detection in industrial automation, with NPN digital output at 12-24V for easy integration into PLC. Offers distance adjustment 5-50 cm and NO or NC selection, has status LED for quick monitoring. Compact and robust PBT housing, includes metal base for secure mounting.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Distance sensor, Omron E3Z-D62 (NPN), designed for precise object detection in industrial applications. The integrated LED indicator clearly displays the operating status, facilitating real-time activity monitoring. The robust housing and small dimensions make it easy to integrate into production lines, packaging systems or automatic handling equipment.

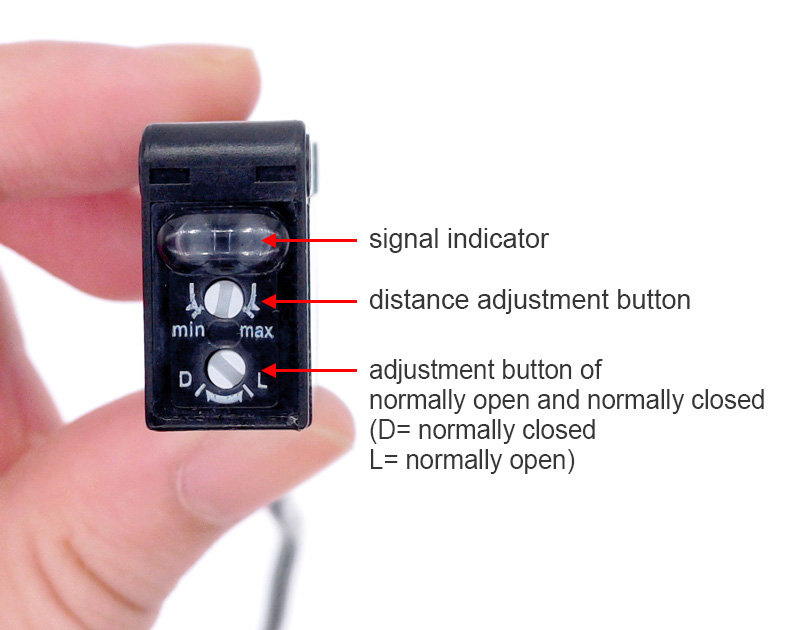

The sensor has a semi-adjustable for adjusting the distance and one for setting the normal state (Normal open or Normal closed).
The sensor comes with a metal base for fixing it in the desired location.
The sensor has an NPN (sinking) output, meaning the sensor output connects to ground (GND) when active. Current flows from the load to the sensor, then to GND.
Typical NPN schematic: VCC - Load - Sensor output - GND.
Specifications:
Model: E3Z-D62
Supply voltage: 12-24V
Type: NPN
Signal: digital
Detection distance: 5-50cm
Response time: < 1ms
Consumption: < 30mA
Residual voltage: <2V
Light wavelength: 860nm
Operating principle: reflective
Housing material: PBT
Cable length: 185cm
Weight: 40g
Sensor dimensions: 31 x 20mm

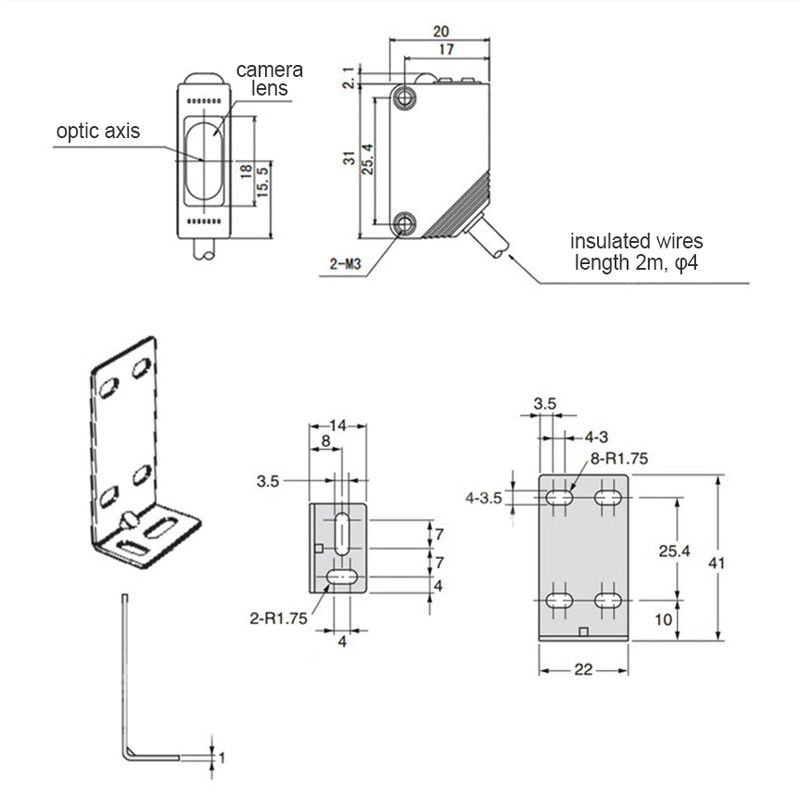

Dimensions:
Use:
Secure the sensor using the mounting holes and attach it to the desired surface.
Correctly connect the wires to the power supply and control circuit (Blue - GND, Brown - VCC, Black - NPN Signal).
Check the LED to be able to track the sensor status in real time.
Login:
| thread | Color | Log in | Function |
|---|---|---|---|
| VCC | Brown | +12V ~ +24V DC | feeding |
| GND | Blue | Ground (0V) | GND reference |
| Signal | Black | Controller input (NPN) | Output signal |
| Potentiometer | Function | Description |
|---|---|---|
| Distance | Detection distance adjustment | Adjust the distance between 5 and 50 cm |
| Exit mode | NO / NC selection | Choose between Normally Open (NO) or Normally Closed (NC) |
