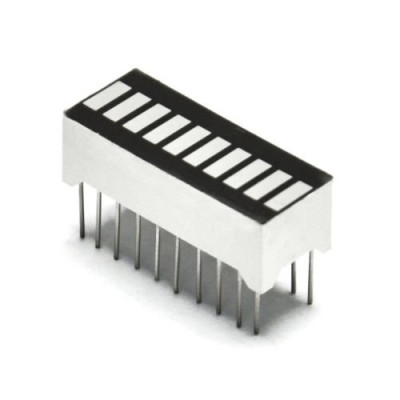

LED digital display, 10 segments, graphic bar
Quickly and intuitively displays intensity levels in electronic projects, through 10 LED bar segments with very good visibility in low or bright light. Operates at 2-2.2V and 20mA per segment, with resistors can be easily used at 3.3V or 5V. Low power consumption and parallel interface for easy integration, anode per segment and common cathode.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
LED digital display, ideal for use in electronic projects that require the display of an intensity level in a visual and easy-to-read manner. Being bright enough, the LEDs offer excellent visibility even in conditions of low light or strong sunlight.
The display works at a working voltage of between 2 and 2.2VDC at a current of 20mA, but it can also be powered from a higher voltage such as that provided by a 5V or 3.3V development board, when resistors with the value are used the right one . The small current consumed makes it suitable for use with Arduino boards, having a consumption that does not exceed the output current specifications of the digital pins.
Its parallel interface makes its integration in an electronic project simple and easy. The power is supplied to each segment separately, on the Anode, with GND common to all on the Cathode.
Specifications:
Supply voltage: 2 - 2.2VDC
Current consumed per LED: 20mA
Number of LED segments: 10
LED color: Green (may vary depending on the batch)
Interface: Parallel
Working temperature: -40°C to +85°C
Size: 25 x 10 x 15mm
