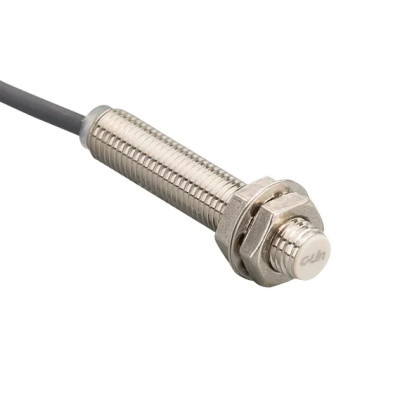

Inductive proximity sensor, PNP, NO, LJA18M-10P1, 6-36V
Inductive proximity sensor for non-contact detection of metal objects, ideal for industrial automation and DIY projects. Non-flush M18 mounting with a 10 mm detection distance, 6-36 VDC supply, and PNP NO output compatible with PLCs and microcontrollers. Rugged IP67 housing with status LED and integrated 2 m cable for quick connection.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Inductive sensor from the LJA series designed for contactless detection of metal objects. The cylindrical body with a diameter of 18mm (M18) allows quick mounting in various industrial applications or DIY projects. The LJA18M-10P1 variant features a detection distance of 10 mm, PNP output, normally open (NO), operates at a supply voltage range of 6-36 VDC, and comes with a 2-meter integrated cable with 3 wires. The sensor is of the non-flush (non-embedded) type.
The status LED indicates the presence of an object within the detection range, and the integrated protections (short circuit, reverse polarity) ensure safe operation in industrial environments.
Specifications:
Body diameter: 18 mm (M18)
Mounting type: Non-flush (non-embedded)
Supply voltage: 6 - 36 VDC
Current consumption: ≤ 15 mA (no load)
Output current: ≤ 300 mA
Standard detection distance: 10 mm
Response frequency: 0.2 KHz
Output type: PNP, NO (normally open)
Protections: Short circuit, reverse polarity
Operating temperature: -25 ~ 65°C
Protection rating: IP67
Cable: 3 wires, 2 m length, PVC insulation
Housing material: Nickel-plated brass
Sensing surface: ABS
Pinout:
| Wire color | Signal | Description |
|---|---|---|
| Brown | VCC | Positive supply (6-36V DC) |
| Blue | GND | Ground |
| Black | OUT | PNP output |
Usage:
Install the sensor on an M18-compatible mount, ensuring a clear distance from other metal objects that could interfere with detection.
Connect the brown wire to the power source (6-36 VDC), the blue wire to ground, and the black wire to the controller input (PLC, Arduino, relay, etc.).
For stable operation, it is recommended that the working distance be set to a maximum of 70% of the standard detection distance. The standard detection distance (10 mm) applies to iron. For other metals, the effective distance is calculated by multiplying the standard detection distance by the corresponding correction coefficient:
Steel: ~0.9
Brass: ~0.7
Chrome-nickel: ~0.6
Aluminum: ~0.4
In the absence of a metal object in front of the sensor, the output is OFF (zero voltage). When a metal object enters the detection range, the output switches to the supply voltage (positive), activating the connected load. The built-in LED lights up simultaneously.
Attention!
Do not exceed the maximum output current of 300 mA; for large loads (gear motors, bulbs, etc.), use an intermediate relay.
In applications with strong interference, install an overvoltage protection device.
Do not use the sensor within the first 100 ms after powering on, as this is the stabilization period.
