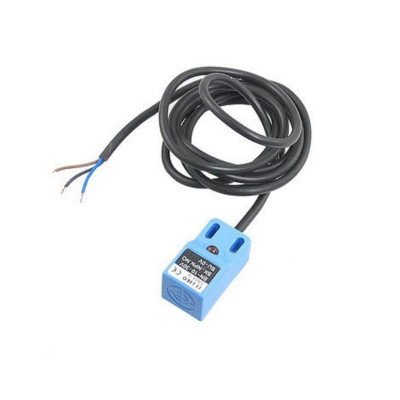

Inductive proximity sensor SN04-N, NO, 10-30V, NPN
3-wire NPN inductive sensor, ideal for non-contact detection of metal parts in automation and machinery. Switches on proximity up to 5mm and lights up the red LED for visual confirmation. NO operation, NPN output for easy integration at 10-30VDC, IP67 dust and water resistant housing, can also detect through thin non-metallic materials.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Inductive sensor, NPN, SN04, with 3 wires, which detects the proximity to a metal surface through the principle of induction.
It can detect up to a distance of 5m, depending on the type of surface and its shape.
It can also be used for detection through thin non-metallic surfaces.
It features a red LED that lights up when a metal object is near.
The sensor is of the Normally Open type: the supply voltage will be present on the signal wire if there is no metal surface in contact. The voltage will drop to almost 0 in the presence of contact with a metal surface.
Specifications:
Supply voltage: 10 - 30VDC
Current consumption: 5mA max
Detection distance: max 5mm
Output voltage: 10 - 30V (depending on supply voltage)
Operation: Normally Open (NO)
Water and dust resistance class: IP67
Indication LED: Red, on when ignition is closed
Dimensions mm: 18.2 x 17.5 x 34mm
Wire length: 1m
Mounting holes: 3.2mm x 8.3mm , hole depth 8.7mm
Content:
1 x Sensor
1 x Mounting kit (screw, washers, nuts), included depending on the batch
Instructions:
Brown wire: Power supply 6 - 36VDC
Blue Wire: GND
Black Wire: Output
