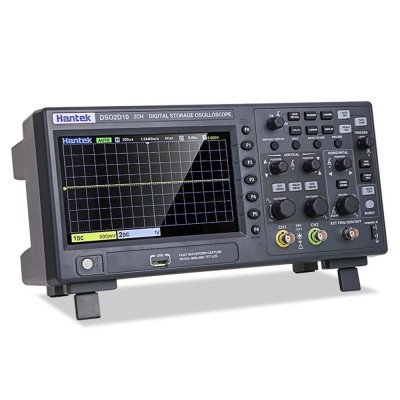

DSO2D10 digital oscilloscope, Hantek, 2 channels, 100MHz
2-channel digital oscilloscope, ideal for quick signal measurement and diagnosis in electronic projects and service. Offers 100MHz bandwidth and 1GSa/s sampling for precise captures, 7-inch TFT color screen for clear viewing, FFT analysis functions and UART I2C SPI CAN LIN protocol decoding, plus USB connection to PC for saving and analysis.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The DSO2D10 digital oscilloscope from Hantek is a powerful and precise instrument used in the field of electronics to measure and analyze electrical signals. With two measuring channels and a wide range of frequencies, the DSO2D10 oscilloscope offers the possibility to visualize and analyze complex signals in real time. Here is a detailed description and technical specifications of this product:
This is an advanced measuring tool designed to meet the needs of electronics engineers and technicians. It offers powerful functions and features, such as high resolution, color screen, data storage capacity and advanced signal analysis, facilitating precise and real-time measurements of electrical signals.
By installing the dedicated program, you can use the oscilloscope directly connected to the computer via the included USB cable.
Specifications:
Supply voltage: 220VAC, via the included cable
Brand: Hantek
Model: DSO2D10
Channels: 2, independently controllable
Sampling time: 1GSa/S
Band: 100MHz
Memory depth: 8M
Vertical range: 2mV/div - 10V/div
Wave generator: Internal, integrated, 5MHz
Generated wave types: arbitrary, DC, exponential, noise, ramp, rectangular, sine
Generated wave: 0.1Hz...1MHz (ramp waveform), 0.1Hz...10MHz (rectangular waveform), 0.1Hz...25MHz (sine waveform), 1µHz...25MHz (arbitrary waveform)
Vertical resolution: 12bit
Trigger: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC
CAN protocol decoding and analysis: RS232/UART, I2C, SPI, CAN, LIN
USB interface: Supported, connect to PC via cable application
Input coupling: AC, DC, GND
Accumulation time: <3.5ns
Maximum wave frequency: 25MHz
FFT analysis: Hanning, Flattop, Rectangular, Bartletta, Blackman, Hamming
Mathematical functions: addition, subtraction, division, multiplication and FFT
Protocol analysis: I2C, SPI, RS232/UART, CAN, LIN
SCPI Support: Yes
Screen: color LCD, TF, 7 inches
Dimensions mm: 318 x 140 x 150mm
Characteristics:
Measurement channels: DSO2D10 is equipped with two independent measurement channels, allowing simultaneous monitoring and analysis of two different signals.
Bandwidth: The DSO2D10 oscilloscope works with 100MHz bandwidth, offering flexibility depending on the application requirements.
Sampling rate: This oscilloscope has a maximum sampling rate of 1GSa/s, which means it can capture and display complex signals with high resolution.
Screen: DSO2D10 is equipped with a high-resolution TFT color screen, which allows clear and detailed display of measured signals and other relevant information.
Hiding time: The oscilloscope offers an adjustable hiding time, allowing the observation of signal details for short or long periods, depending on the needs.
Storage and connectivity: This oscilloscope has an internal data storage capacity, allowing the saving and subsequent recovery of the measured data. It is also provided with USB and LAN ports for connectivity and data transfer.
Signal analysis: The DSO2D10 offers advanced signal analysis functions such as FFT (Fast Fourier Transform), math and measurement automation functions, allowing for more detailed signal evaluation.
Hantek's DSO2D10 digital oscilloscope is a powerful and versatile instrument designed to meet the needs of electronics engineers and technicians. With two measurement channels, 100MHz or 150MHz bandwidths and a wide range of advanced features and functions, this oscilloscope offers a reliable and accurate platform for electrical signal analysis.
For more information, consult the manual available in English in the Download section.
