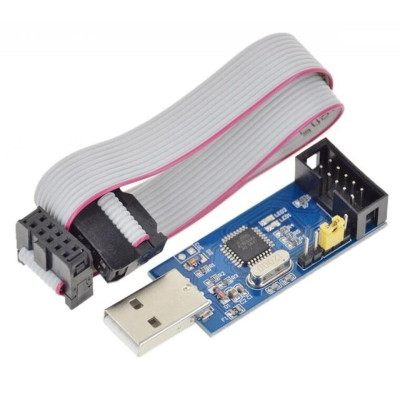

AVR USBASP USBISP Atmega 10-pin programmer, Arduino compatible
ISP programmer for Atmel AVR microcontrollers, allows direct flash on the board without disassembly, 5V USB power supply and selectable 3.3V or 5V logic via jumper, based on ATMega8 at 12 MHz for fast programming, compatible with AVRDUDE and other utilities on Windows, Linux and Mac, includes 10-pin ribbon cable and overvoltage protection.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
USBasp programmer designed for programming Atmel AVR microcontrollers. It uses an ATMega8 microcontroller and passive components, operating at a frequency of 12 MHz. Being an ISP (In-System Programmer), it allows programming microcontrollers directly on the development board without the need to remove them. Due to the use of a firmware-only USB driver, the device does not require a special USB controller, making it an extremely affordable and economical solution.
The device is compatible with a wide range of AVR and AT89Sxx microcontrollers. It integrates overvoltage protection, and standard ISP connections are provided through an included adapter.
Specifications:
Power supply voltage: 5VDC via USB
Main microcontroller: ATMega8
Logic voltage: 3.3V or 5VDC, selectable via jumper
Frequency: 12 MHz
Connectivity: USB type B connector for power and data transfer
Supported functions: Reading/writing EEPROM, firmware, fuse bits, and lock bits
Cable length: 30cm
Programming speed: Up to 5KB/s
LED indicators: Separate LEDs for power and programmer status
Protection: Overvoltage and target power protection circuit (up to 500 mA)
Software compatibility:
AVRDUDE (from version 5.2)
BASCOM-AVR (from version 1.11.9.6)
SinaProg, Khazama AVR Programmer, eXtreme Burner - AVR.
Platform compatibility: Linux, Mac OS X, and Windows.
Microcontroller compatibility:
Atmega8/48/88/168/328.
AT89S series: AT89S51, AT89S52, AT89S53, AT89S8252.
Attiny2313/4313, Attiny12/13/13A/15, Attiny25/45/85, Attiny24/44/84.
Usage:
Package contents:
1 x USBasp Programmer.
1 x 10-pin ribbon data cable.
