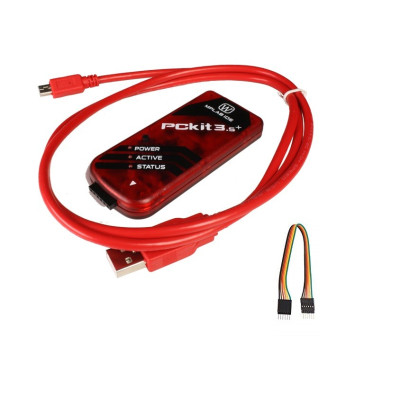

PIC Programmer, Pickit 3.5+, USB, Debugger
USB debugger and programmer for PIC and dsPIC Flash microcontrollers, ideal for in-circuit development and debugging directly from MPLAB IDE. Offers real-time execution, integrated overvoltage and short-circuit monitoring, upgradable firmware, and diagnostic LEDs for quick status. Includes ICSP cable and supports Programmer-to-Go programming for field work.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
PICkit 3.5+ is a Microchip Compatible Circuit Debugger/Programmer. Uses in-circuit debugging logic built into every Flash memory chip to provide a low-cost hardware debugger and programmer.
PICkit3.5+ enables debugging and programming of PIC and dsPIC Flash microcontrollers using the powerful MPLAB IDE.
This is an upgrade from the Pickit 3 programmer with "to go" programming.
Functions:
USB (interface with a maximum speed of 12 Mbit/s for the host computer)
Real-time execution
Compatible with MPLAB IDE (free download from Microchip)
Built-in overvoltage/short circuit monitor
Firmware upgradeable from PC/web download
Totally closed
Diagnostic LEDs (power, busy, error)
Read/write program and data memory of the microcontroller
Erasing the program memory space with verification
Peripheral ice creams at the break point
Program up to 512K bits of flash with Programmer-to-Go
ICSP cable included
Specifications:
Type: Debugger/Programmer
Tool/board application: debugging/programming
Supported MCU families: Flash-based PIC MCUs
Basic architecture: PIC, dsPIC
IC product type: In-circuit debugger
