Oscilloscope, LCR and Signal Generator, Multifunctional, DSO-TC3
3-in-1 multi-function tester for quick electronics diagnostics, combines digital oscilloscope, LCR and signal generator in one portable device. 2.4 inch color TFT screen for easy reading, rechargeable Li-ion battery for field work, automatic component and transistor measurement and identification, multiple waveforms for testing and troubleshooting.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
DSO-TC3 multifunctional tester from FNIRSI, which combines the functions of a digital oscilloscope, electronic component tester, signal generator, continuity tester, voltage tester, temperature and humidity meter, as well as infrared decoding.
It is equipped with a 2.4-inch TFT color screen and a rechargeable battery, offering high portability and multiple practical functions in a single product, making it ideal for both amateurs and professionals.
The DSO-TC3 model is an improved version of the DSO-TC2, offering more accurate and stable detection due to significant upgrades, including increased sampling rate, bandwidth and input voltage range, as well as the addition of additional functions such as capacitor ESR testing and transistor detection.

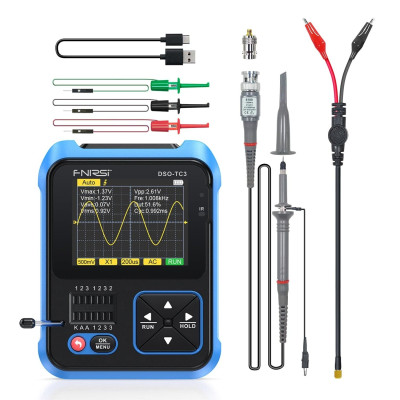

The tester comes with test leads, USB cable and P6100 BNC probe.
CAPACITORS NEED TO BE DISCHARGE FIRST! MEASURING CHARGED CAPACITORS WILL DAMAGE THE TESTER AND VOID THE WARRANTY!
Specifications:
Power supply: USB 5VDC
3-in-1 integration: Digital oscilloscope, electronic component tester, signal generator
Screen: 2.4 inch TFT color
Battery: Rechargeable Lithium
Complex tests: Detection of NPN, PNP, FET transistors, diodes and integrated circuits
Advanced functions: Waveform generator (sine, rectangular, triangular, pulse)
Component Analysis: Measurements for resistors, capacitors, inductors and batteries
Digital Oscilloscope:
Sampling rate: 10MS/s
Bandwidth: 500kHz
Test voltage: 400V (maximum)
Vertical sensitivity: 10mV-10V
Horizontal time base: 1µs-10s
Trigger modes: Auto / Normal / Single
Signal Generator:
Sine wave, square wave, triangle wave, pulse: 1-100kHz (amplitude up to 3.3V)
DC signal: 0-3.3V
Component tester:
Transistors: NPN, PNP, FET, IGBT, MOSFET, TRIAC
Capacitors: 25pF~100mF
Resistance: 0.01Ω~50MΩ
Inductors: 10µH~1000µH
Battery testing: 0.1~4.5V
Temperature tests: DS18B20 (0-85°C), DHT1 (0-60°C, humidity 5-95%)
Infrared decoding: NEC protocol
Use:
CAPACITORS NEED TO BE DISCHARGE FIRST! MEASURING CHARGED CAPACITORS WILL DAMAGE THE TESTER AND VOID THE WARRANTY!
