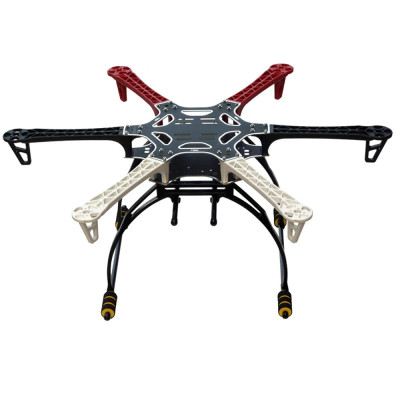

Drone Frame F550, ATF, Hexacopter
ATF type frame kit for building a custom hexacopter, suitable for hobby, educational projects and testing. Includes durable plastic arms with landing legs for stability, two fiberglass PCB boards with pads for direct connection that simplifies wiring, compact modular design for quick assembly and easy maintenance.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
ATF F550 drone frame kit, ideal for drone enthusiasts who want to build a customized hexacopter platform. This model is not ready to fly, requiring the additional purchase of electronic components such as motors, ESCs and flight controller.
The frame is made of durable plastic arms with landing pads that provide stability and protection during takeoff and landing. The two fiberglass printed circuit boards (PCBs) allow for direct connection of electrical components, simplifying wiring and overall assembly.
Due to its modular design and compact dimensions, this frame is suitable for both hobby projects and educational applications or drone development experiments.
Specifications:
Model: F550
TYPE: Hexacopter
Assembled: No
Color: White, red and black
Width: 550 mm
Height: 55 mm
Frame weight: 480 g
Landing leg weight: 18 g
Set contents:
2 x PCB Frame
6 x Arms
6 x Landing legs
Recommended optional parts:
6 x A2212/2216/2814 motors, 800KV - 1100KV
6 x ESCs, 15 – 30A
6 x 1045 or 8045 propellers
1 x 4S LiPo battery, 2000 - 3600 mA
Use:
The frame assembly is done by fixing the arms between the two PCB boards, then mounting the landing legs at their ends. After assembly, connect the motors and ESCs to the pads on the PCB board, respecting the indicated polarity. It is recommended to check all connections before powering up. For a step-by-step visual guide, you can follow the assembly example available here:
