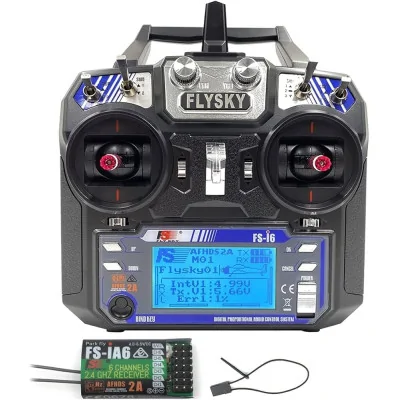

FlySky FS-i6 radio control, FS-iA6 receiver, 6 channels, 2.4GHz, AFHDS 2A
Complete 6-channel RC control set, ideal for drones, helicopters and airplanes. 2.4GHz AFHDS 2A technology ensures stable signal and interference resistance, for fast response and precise control. The illuminated LCD screen simplifies real-time settings, and the high-resolution sticks provide fine adjustments. The included receiver is compact and lightweight, suitable for projects where weight and reliability matter.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The FlySky FS-i6 remote control with FS-iA6 receiver is a complete set for controlling 6-channel RC models, suitable for drones, helicopters and airplanes.
It operates on 2.4 GHz with AFHDS 2A technology, which ensures a stable connection and reduces interference, providing quick response to commands and precise control.
The remote controller is ergonomically designed for comfortable use, and the illuminated LCD screen allows for easy parameter configuration and real-time verification of settings. For fine adjustments, the sticks offer high resolution, and low-voltage alerts help prevent unexpected shutdowns during flight.
The FS-iA6 receiver, included in the package, is compact and lightweight, powered directly from the model's installation and is ideal for projects where weight and signal reliability matter.
Specifications:
FlySky FS-i6 remote control:
Number of channels: 6
RF frequency range: 2.4055 - 2.475 GHz
RF power: < 20 dBm
Number of RF channels: 140
Bandwidth: 500 KHz
2.4 GHz system: AFHDS 2A
Modulation type: GFSK
Stick resolution: 4096
Low voltage alarm threshold: < 4.2V
DSC Port: PS/2 PPM
Antenna length: 26mm x 2
Power supply: 6 VDC (4 x AA 1.5V batteries)
Display: Positive transflective STN display with backlight, 128 x 64 pixels, VA 73 x 39 mm
Dimensions: 174 x 89 x 190mm
Weight: 392g
FS-iA6 receiver:
Number of channels: 6
RF frequency range: 2.4055-2.475GHz
Number of RF channels: 140
RX Sensitivity: -105dBm
Bandwidth: 500 KHz
Modulation type: GFSK
Supply voltage: 4-6.5 VDC
Antenna length: 26mm x 2
Dimensions: 40.4 x 21.1 x 15mm
Weight: 7g
Remote control diagram:
Receiver diagram:
Digital user manual:
Package contents:
1 x FlySky FS-i6 Remote Control
1 x FS-iA6 receiver
1 x User Manual
