Battery Capacity Tester, WH-586, 1-15V

Tester for the real capacity of batteries by controlled discharge, for 1-15V batteries. Displays voltage, current and discharged capacity, supports up to 3A, allows automatic or manual setting of the cut-off voltage depending on the chemistry. Simple power supply via micro USB 5V, ideal for Li-ion, LiFePO4, NiMH and lead.

Ft3,487.29 Tax included

Ft2,882.06 Tax excluded

No reviews yet

1-2 zile

Shipping by Thursday 27 August

This product has a warranty of 2 years.

INTERNATIONAL DELIVERY
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.

FAST DISPATCH 24H
We ship from our stock within 24H

LOYALTY POINTS
You earn points with every order, worth 5%.

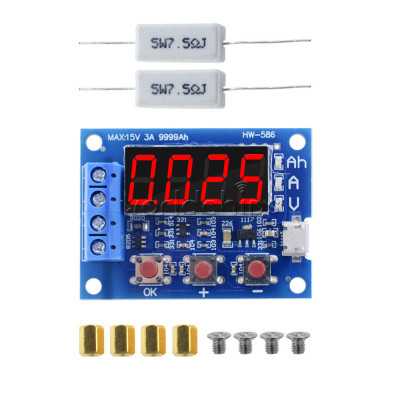

Battery capacity tester module, HW-586, designed for precise measurement of the actual capacity of batteries through a controlled discharge process.

It operates on a resistive load, which means that the resistors heat up strongly during operation, making it mandatory to mount the 50W aluminum resistor on a metal plate for proper heat dissipation and safety in use.

The module is equipped with special DC bias to improve the accuracy of measurements, so that in the absence of a battery connection it displays a low voltage, without influencing the actual results. The tester supports discharge currents up to 3A, displays voltage, current and discharged capacity, and can automatically or manually set the cut-off voltage depending on the type of battery being tested. It is ideal for testing Li-ion, LiFePO4, NiMH or lead batteries.

Specifications:

Power supply: DC 4.5 – 6V via micro USB connector

Operating current: below 70mA

Supported discharge voltage: 1.00 – 15.00V with 0.01V resolution

Shutdown voltage range: 0.5 – 11.0V

Maximum current supported: 3,000A with 0.001A resolution

Maximum voltage measurement error: 1% + 0.02V

Maximum current measurement error: 1.5% ± 0.008A

Maximum measurable capacity: 9999Ah with dynamic decimal display

Plate size: 50 x 37 mm

Instructions:

1. Connect the fully charged battery according to the diagram on the PCB. Plus to Plus, Minus to Minus. DO NOT CONNECT REVERSELY!

2. Connect the load used to discharge the battery according to the image below.

3. Power the tester via the MicroUSB jack with 5VDC.

4. When you press the OK button, the tester will display the estimated discharge voltage. This value can be manually adjusted by the Plus and Minus buttons.

5. Press OK again and the tester will start discharging the battery with the three measured parameters (battery voltage, discharge current and discharged capacity) flashing.
