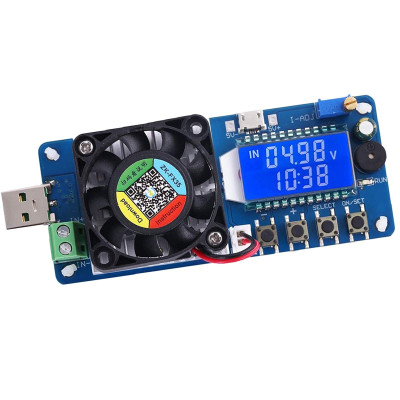

Load module, battery capacity tester, FX35, 35W, 5A, 1.5-25VDC, with display
Adjustable electronic load for testing the capacity of batteries and DC sources, operates between 1.5 and 25V and allows setting the current up to 5A, dissipates up to 35W with integrated radiator and fan. The display shows voltage, current, power, Ah and discharge time, and the separate 5V power supply via USB reduces measurement errors.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Capacity tester module for accumulators, which can be used as an adjustable load, which supports voltages between 1.5V and 25VDC, a load current set by potentiometer between 0.00 and 5.00A. This module can dissipate a total power of up to 35W, using the integrated radiator and fan.
The supply circuit and the load circuit are separated in this way, eliminating measurement errors, given the fact that the module, with the fan on, consumes somewhere around 200mA.
The working voltage of the module is 5VDC, the power is supplied through the male USB or MicroUSB plug. Alternatively, a 5V supply can be attached directly by tinning the +5V and -5V pads (GND).
The display allows the following information to be displayed:
- Input voltage
- Current consumed in real time (X.XXA)
- Power in real time in W (XX.XXW)
- Cumulative discharged current in Ah (XX.XXAh)
- Cumulative operating time in hours (XX:XXh)
- Temperature of the module in degrees C (hold down the SELECT button to switch between displaying Voltage or Degrees C)
Specifications:
Supply voltage: 5VDC, via USB
Working voltage: 1.50 - 25VDC
Load current: 0.00 - 5.00A
Module current consumption: 200mA, with the fan on
Cooling: Active, radiator plus fan
Under-voltage protection: 1.5V, adjustable between 1.5 and 20VDC
Over-voltage protection: 25.0V, adjustable between 1.5 and 25.0V
Overcurrent protection: 5A, adjustable between 1.0 and 5.1A
Over-power protection: 35W, adjustable between 1.0 and 35.5W
Temperature protection: 80 degrees C, adjustable between 40 and 80 degrees C
Buzzer: Yes, audible warning
Dimensions mm: 114 x 43 x 30mm
Use:
During operation, optimal cooling of the module must be ensured to avoid its damage.
The buttons are used as follows:
- : Decrease in value
+ : Increase value
SELECT : short press, change displayed parameter. Long press, switching between Voltage and Temperature. In the menu, the SELECT key will switch the settings in the menu
ON/SET : Short press, switches between On or Off task. Long press, access the menu. Long press from the menu, exit from the menu.
