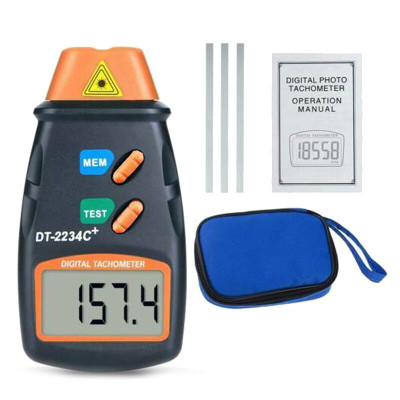

Digital tachometer without contact, 99.999RPM, DT2234C
Non-contact digital tachometer for quick measurement of engine and shaft speed, uses reflective tape applied to the shaft and reads from 50 to 500 mm. Displays up to 99,999 RPM on a clear LCD screen, with memory for the last, minimum and maximum value. The set includes a case, instructions and reflective tapes, 9V power supply.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Digital photo tachometer that uses a reflective surface glued to the motor shaft to detect and display the number of revolutions per minute.
The set includes the cover, instructions and reflective strips.
CAREFUL! THE TACHOMETER HAS NO POLARITY PROTECTION! WRONG CONNECTION OF THE BATTERY, EVEN FOR A SHORT TIME, WILL LEAD TO IT FAILURE!
MAKE SURE OF THE CORRECT POLARITY OF THE BATTERY!
Specifications:
Supply voltage: 9V, 9V battery is NOT included
Model: DT2234C
Display: 18mm LCD
Measuring range: up to 99,999 rpm
Resolution: 0.1Rpm (up to 999.9rpm), 1Rpm (over 1000rpm)
Distance: 50 - 500mm
Memory: last value, maximum value and minimum value
Dimensions mm: 130 x 70 x 29mm
Weight: 160g
Warranty: 24 months
