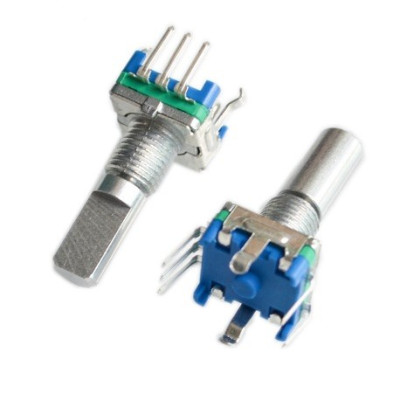

Rotary encoder with click 20mm EC11
Ideal for menu navigation and precise commands, the EC11 incremental encoder offers 20 steps with clear detents, quadrature signal on channels A and B for direction detection, 6 mm shaft for easy button coupling, plus integrated switch for quick confirmation when pressed. Suitable for development boards, control panels and 3D printer controllers.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The rotary encoder with click is suitable for control and menu navigation, featuring a 6 mm diameter shaft and detent rotation for well-defined steps. The quadrature signal on Out A and Out B allows direction detection, while the integrated switch button offers quick confirmation by pressing, often used on development boards and 3D printers.
Specifications:
Type: incremental rotary encoder with click button
Pulses per revolution: 20
Shaft diameter: 6 mm
Signal outputs: Out A, Out B
Reference: GND
Integrated button: press switch
Compatibility: development boards, 3D printer controllers, control panels

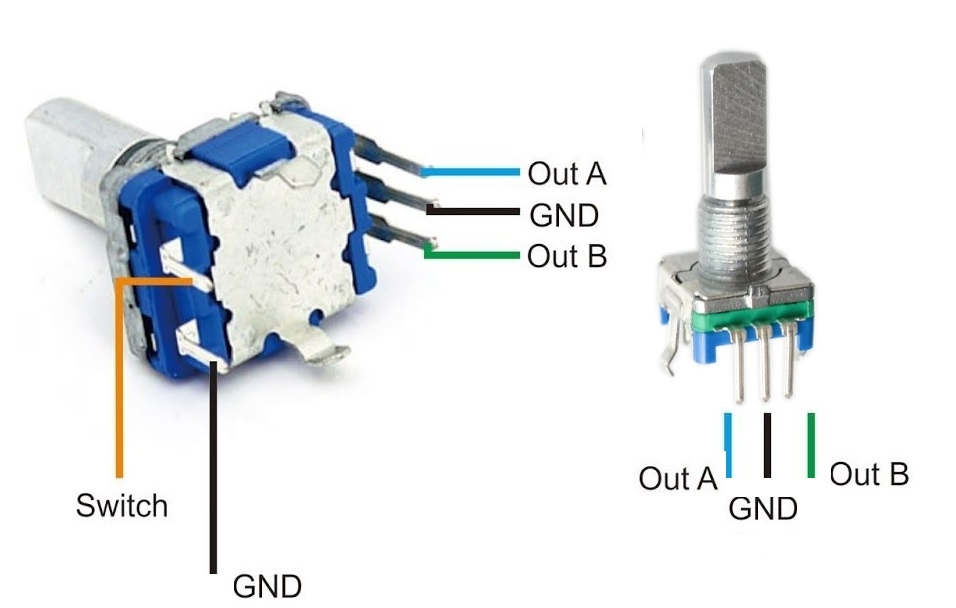

Pinout:
| Pin | Name | Function | Typical connection |
|---|---|---|---|
| 1 | Out A | Channel A signal | Digital input pin with pull-up |
| 2 | GND | Ground | Board GND |
| 3 | Out B | Channel B signal | Digital input pin with pull-up |
| S1 | Switch | Button contact | Digital input pin with pull-up |
| S2 | GND | Button ground | Board GND |
