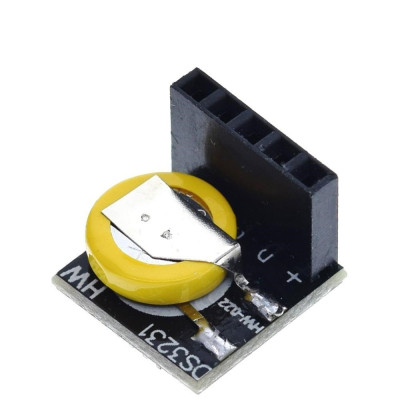

Precision Real Time Clock Module, RTC, DS3231, with battery, 3.3-5V
Precision RTC module for maintaining time and date in Arduino projects or other boards, operates at 3.3-5V and communicates I2C. Offers full calendar up to 2100, high accuracy ±5ppm and two programmable alarms, has integrated backup battery for keeping time during power outages.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Precision clock module with DS3231, compatible with Arduino and other development boards, but also with certain motherboards, which can work on both 3.3V and 5V.
It has a built-in backup battery to stay active when the power is interrupted.
Specifications:
Compatibility: DS3231
Supply voltage: 2.3 - 5VDC
Complete calendar: Seconds, Minutes, Hours, Weeks, Date and Year valid until the year 2100
Alarm: Two calendars
Output: 1Hz and 32.768KHz
Communication: I2C
I2C serial speed: 400kHz
Time accuracy: +-5ppm (0.432 seconds/day)
Operating temperature: -40 - +85 degrees C
Power backup battery: Integrated
Dimensions mm: 13.7 x 13.5mm
Login:
+: VDC, 3-5VDC
D: A4 (SDA)
C: A5 (SCL)
-: GND, minus microcontroller
Test code: See the Download section
