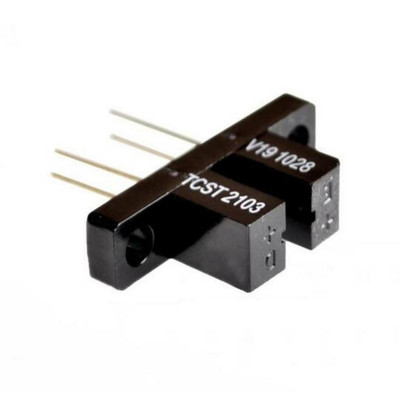

Optical sensor, TCST2103
Photoelectric sensor with IR emitter and phototransistor, ideal for detecting the presence of objects in the slot, suitable as an optical switch, counter or encoder. It has an aperture of 3.1 mm, ambient light filter, wavelength 950 nm and response time of 10 ms, with If 60 mA and collector current 4 mA.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Photoelectric sensor that uses an infrared emitting diode and a phototransistor to detect the presence of an object between them.
It can be used as a counter, optical switch or encoder.
Specifications:
Model: TCST 2103
Distance between diodes: 3.1mm
Collector current Ic: 4mA
Current If: 60mA
Ambient light filter: Yes
Emitter wavelength: 950nm
Response time: 10ms
No amplification
Technical sheet available in Associated Files.
