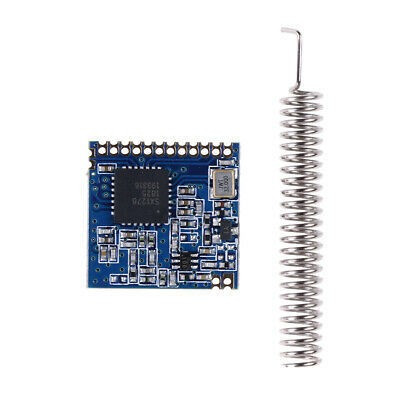

LOra 433MHz transceiver module SX1278 5km
The SX1278 LoRa transceiver module provides reliable radio communication between two devices up to 5 km in open field, ideal for telemetry and automation. Compatible with Arduino and other development boards, it offers high sensitivity up to 139 dBm, 20 dBm transmit power and standby consumption below 200 nA. It operates at 3.3 V on the logic pins and supports LoRa and FSK modes.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The Lora SX1278 transceiver module allows radio communication between two modules over a distance of 5km in open field. Product compatible with Arduino and other development boards.
The module operates at a voltage of 3.3V on the logic pins (requires a logic level converter)
Specifications:
Frequencies: 433MHz/470MHz (Customizable 137-1020 MHz)
Sensitivity up to: 139 dBm
Maximum output power: 20dBm
Standby current: <200nA
Data transfer rate: @FSK,1.2-300kbps
@Lora TM,0.018-37.5kbps
Lora TM, FSK, GFSK and OOK Modulation mode
Input voltage: 1.8-3.7V
127 dB Dynamic Range RSSI
Packet engine up to 256 bytes with CRC
Operating temperature: -40 ~ + 85 °C
Built-in temperature sensor and low battery indicator
