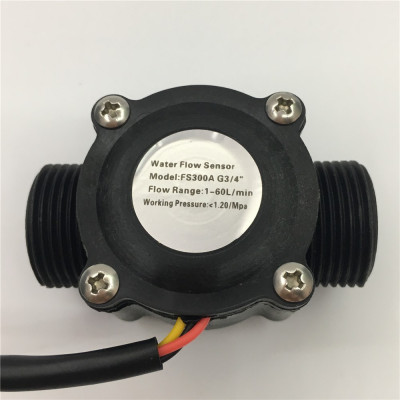

Liquid flow meter sensor, G3/4, 1-60L/min
Quickly monitor water flow and volume in projects with Arduino or other boards, ideal for automation and measurement systems. Operates at 5V DC with low consumption, measures 1-60 L/min, supports temperatures up to 80°C and pressure up to 1.2 MPa, standard G3/4 connection for easy installation on installations.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Water flow module, compatible with Arduino and other development boards.
With this sensor you will be able to monitor the amount of water passed through it.
Specifications:
Model: FS300A
Maximum operating current: 15mA (DC 5V)
Supply voltage: 5VDC
Measured water volume: between 1 and 60 L/min
Operating temperature: Max 80°C
Allowed pressure: 1.2 Mpa
External pipe: G 3/4"
Outer diameter: 26mm
Inner diameter: 16mm
Produs destinat utilizarii in proiecte electronice, automatizari, prototipare, educatie si cercetare.
Produsul trebuie utilizat numai conform specificatiilor tehnice mentionate in descriere si/sau in documentatia produsului.
Avertismente generale de siguranta:
Nu utilizati produsul la tensiuni, curenti sau temperaturi peste valorile specificate.
Montajul si conectarea trebuie realizate de persoane cu cunostinte tehnice minime in domeniul electric/electronic.
Evitati scurtcircuitele, inversarea polaritatii si conectarea gresita a alimentarii.
Nu lasati produsul alimentat nesupravegheat in timpul testelor.
Produsul nu este jucarie si nu este destinat copiilor.
Pentru modulele electronice, se recomanda utilizarea in carcase, panouri sau montaje protejate, dupa caz.
Identificare produs:
Denumirea produsului, codul/SKU-ul si caracteristicile tehnice sunt mentionate in pagina produsului si/sau pe eticheta ambalajului.
Producator / Importator / Distribuitor:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Website: www.sigmanortec.ro
Persoana responsabila in UE:
Sigmanortec S.R.L.
Calea Bucuresti nr. 9, Targu Jiu, Gorj, Romania
E-mail: [email protected]
Documentatie si siguranta:
Pentru informatii suplimentare, fise tehnice, declaratii de conformitate sau instructiuni, ne puteti contacta la [email protected].
Reviews (5) - Review moderation
Era bine sa fi trecut si o formula de calcul a debitului macar. Pentru cei care cauta, formula e Pulse frequency [Hz] / 5.5 = flow rate [L/min], adica vreo 330 de impulsuri pentru fiecare litru de apa cu o rezolutie de 3,03 ml. Sunt curios cat este de fiabil, am sa il folosesc la o aplicatie destul de pretentioasa.
