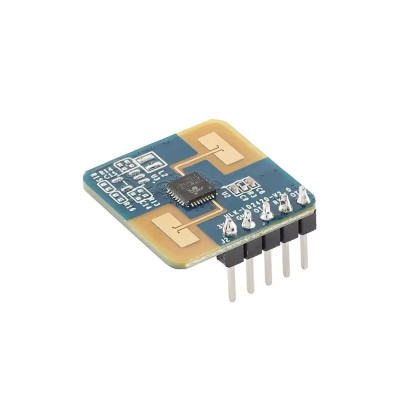

Human presence sensor, 24G, Hi-Link, radar, LDS2420
24 GHz radar module for indoor human presence detection, capable of sensing motion and micro-motion for quick triggering and real-time update. Offers up to 8 m detection distance, wide coverage angle ±60°, easy configuration of sensitivity and detection area. Simple integration via GPIO or UART, 3.3V.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Radar module with LDS2420, working at 24 GHz frequency, equipped with transmission and reception antennas integrated directly on the PCB. It uses radar distance measurement technology, using millimeter waves, and advanced signal processing technology from the S3 series chips to accurately detect movement, micro-motion and the presence of the human body.
The module is ideal for detecting human presence in indoor scenarios, updating the detection results in real time and having a maximum detection distance of 8 meters for people in motion.
Thanks to the use of radar, this module detects both human bodies and objects, as long as they are in motion.
The HLK-LD2420 is equipped for simple configuration, supporting adjustment of detection distance range, sensitivity and detection refresh time. It is compatible with GPIO and UART interfaces for easy integration and is preloaded with configurations for detecting human presence.
Specifications:
Chipset: SoC with integrated firmware
Frequency: 24 GHz ISM band, FCC, CE certified
Supply voltage: 3.3V (supports a wide voltage range of 3.0 V - 3.6 V)
Average operating current: 50 mA
Detection distance: Up to 8 m for human movement
Detection angle: ±60°
Supported interfaces: GPIO and UART
Signal: HIGH (3.3V) upon detection)
Additional features: Independent configuration of trigger and hold state, high anti-interference capacity
Dimensions: 20 x 20mm
Use:
The sensor can be used with any USB to TTL programmer that supports 3.3V voltage ( ATTENTION, THE MODULE IS STRICTLY COMPATIBLE WITH 3.3VDC! ).
Communication is simple, by connecting the 3.3V power supply, GND, RX (to TX) and TC (to RX).
