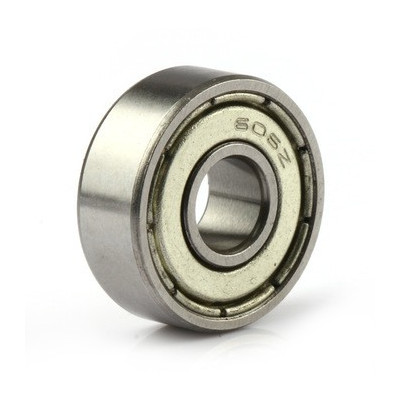

606ZZ Ball Bearing, Radial, 6x17x6mm, ZZ Metal Shields
Ball bearing for guidance and precise rotation in small motors, rollers, 3D printers or lightweight mechanisms. It measures 6x17x6 mm, has double ZZ metal shields for dust protection, low friction for good speeds, and a compact and reliable construction for smooth and durable operation.
Shipping by Wednesday 11 November
Buying this product earns you 0.25 RON in loyalty points.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
The 606ZZ is a radial ball bearing with a single row of balls and metal shields on both sides. It allows a shaft, a non-threaded screw body or a roller to rotate smoothly in its housing or support, replacing sliding friction with rolling friction. It is suitable for guide rollers for tape or filament, small mechanisms, robotics, 3D printers and other lightweight mechanical assemblies.
The bearing has an inner diameter of 6 mm, an outer diameter of 17 mm and a thickness of 6 mm, and the code 606 indicates the miniature series with a 6 mm bore. The ZZ marking shows that both sides are protected by metal shields, which stop large dust particles from entering and keep the grease inside. The balls are kept at equal distance by a cage, between the inner and outer ring.
The main features include the two steel rings, the rolling balls, the cage, the ZZ metal shields fixed on the outer ring and the 606ZZ marking engraved on the shield. It is a passive mechanical part, without electrical power supply.
Specifications:
Type: Single row radial ball bearing
Model: 606ZZ
Inner diameter: 6 mm
Outer diameter: 17 mm
Thickness: 6 mm
Protection: ZZ metal shields on both sides
Dimensions: 6 x 17 x 6 mm
Usage:
Before mounting, check that the shaft is 6 mm and non-threaded in the bearing area, and that the housing has a diameter of 17 mm and a depth of at least 6 mm.
Clean the housing and make sure its bottom is flat, free of burrs or material debris.
Press the bearing evenly and straight. If you insert it into the housing, press only on the outer ring. If you mount it on the shaft, press only on the inner ring.
Do not apply force through the balls, as the bearing may be marked and will make noise.
Secure the shaft axially with washers, spacers or a circlip that touch only the inner ring.
Do not wash the bearing in solvents, as the grease inside is removed and ZZ shields cannot be dismantled.
After mounting, turn the shaft with your fingers. It should rotate smoothly, without grinding noise and without stiff spots.
For a good fit in a 3D printed housing, measure the hole with a caliper and adjust the size after the first test.
- Dimensions
- 6 x 17 x 6 mm
- Model
- 606ZZ
- Type
- Radial ball bearing, single row
- Thickness
- 6 mm
- Outer diameter
- 17 mm
- Inner diameter
- 6 mm
