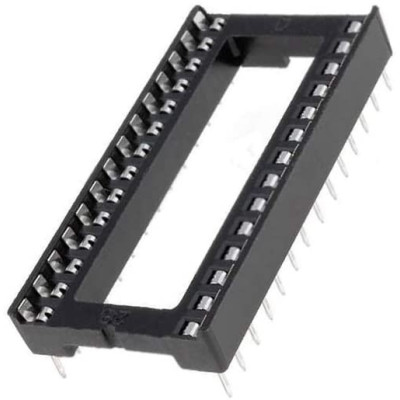

Wide DIP socket, 28 pins, 15.24mm , DS1009
Wide DIP socket for secure mounting of a 28-pin integrated circuit on a PCB, allows for quick replacement of the IC and protects the component from the thermal effects of direct soldering. It has a pitch of 2.54mm , row spacing of 15.24mm , height above the PCB 5.1mm and supports current up to 1A.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Socket for mounting an integrated circuit (IC) with 28 pins. Using the socket on the PCB has the advantage of allowing the IC to be changed when necessary and, by using it, the risk of damaging the integrated circuit due to the heat resulting from direct soldering is avoided.
Specifications:
PCB hole: 0.6mm
Height (over PCB): 5.1mm
Pin spacing: 2.54mm (pitch)
Distance between rows: 15.24mm
Maximum current admins: 1A
Number of pins: 28
