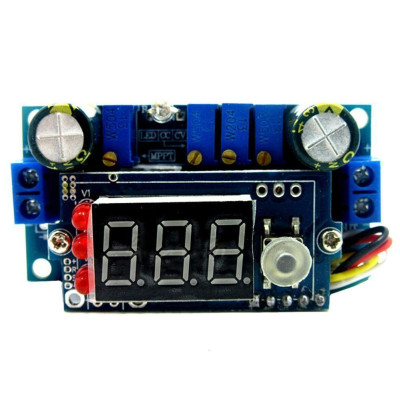

MPPT solar charge control module, 5A, CC/CV, with display, 6-36V
MPPT DC-DC step-down controller for correct solar charging of batteries, with CC/CV mode for constant voltage and current, separate settings for V, A and MPPT, dual display with switching for voltage, current and power, supports 6-36V input and current up to 5A, high efficiency up to 95%, ideal for lithium batteries, power LEDs and electronic projects.
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Solar charging module, 5A, constant current and voltage, MPPT type. It is used together with solar panels and batteries for their correct charging. This module is set by adjustment to the voltage required by the batteries for charging and has an efficiency of 95%.
This module is a DC-DC step-down controller with MPPT function, digital display and constant voltage and current regulation. The module is designed for use with solar panels, DC sources or batteries, making it ideal for charging lithium batteries, powering power LEDs or electronic projects.
It has a double display for reading electrical parameters, a button for switching the displayed information, separate potentiometers for adjusting voltage, current and MPPT point, as well as status LEDs for operation and charging.
Specifications:
Supply voltage: 6 - 36VDC
Output voltage: 1.25 - 32VDC, continuously adjustable
Type: Voltage reducer
Output current: 0.05 - 5Ah
Efficiency: 95%
Operating frequency: 180 Khz
Short circuit protection: Yes
Temperature protection: Yes
Reverse polarity protection: No
The output must be connected to the battery plus the blocking diode, the anti-reverse irrigation module, otherwise the module will burn out! The diode is mounted with the cathode towards the battery to protect the module from reverse voltage, from the battery to the module.
Display: input voltage, output voltage, output current, output power
Status indicator: Yes, red charging, green charged
Dimensions mm: 60 x 31 x 22 (without display)
Use:
First connect the power supply or solar panel to the input terminals respecting the polarity. Without connecting the consumer, adjust the desired output voltage from the voltage potentiometer until the displayed value is the required one. Then set the constant current using the current potentiometer, preferably with an ammeter for accuracy.
If used with a solar panel, adjust the MPPT potentiometer until the maximum output current is obtained, possibly partially covering the panel for fine adjustment. Finally, connect the battery or consumer to the output terminals. The module will maintain the set voltage and current and will automatically optimize the power taken from the solar panel.
The MPPT potentiometer adjusts the maximum power point of the solar panel.
| Module component | Role and description |
|---|---|
| Plus and minus input | Input terminals where the solar panel or DC power source is connected |
| Plus and minus output | Output terminals to battery, LED or other consumer |
| Digital display | Displays input voltage, output voltage, output current or power depending on the selected mode |
| Display toggle button | Allows switching between displaying input voltage, output voltage, current or power |
| LED input voltage display | Lights up when input voltage is selected on the display |
| Power LED | Indicates that the module is powered and working. |
| Voltage potentiometer | Adjusts the output voltage value |
| Constant current potentiometer | Adjusts the maximum output current limit |
| MPPT potentiometer | Adjusts the maximum power point of the solar panel for optimal efficiency |
| Rotating lamp indicator light | Indicates the charging status according to the current delivered |
