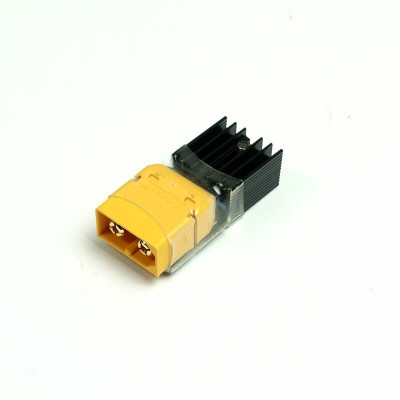

Battery storage module, 2-6S, 1W, XT60
Plug and forget mode for bringing LiPo and Li-Ion batteries to storage voltage, automatically discharges up to 3.85V per cell and stops itself when reaching the target. Automatically identifies the number of cells, works with 2S-6S batteries on XT60 connector, 1W dissipation for controlled discharge and very low consumption after completion.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Plug&forget mode for discharging LiPo and Li-Ion batteries at a voltage of 3.85V per cell, with automatic identification of the number of cells and the target voltage.
Compatible with batteries between 2S and 6S, it is used to bring unused batteries to the storage voltage (storage mode) by discharging them. Once the storage voltage is reached, the module stops the discharge process.
The dissipated power is 1W.
Specifications:
Compatible voltage: 7.9 - 26VDC (2S-6S)
Connector: XT60
Compatible: 1-6S Lithium
Cell detection: automatic
Discharge voltage: 3.85V per cell
Current consumption at the end of discharge: <10uA
Dimensions mm: 32 x 15 x 10mm
