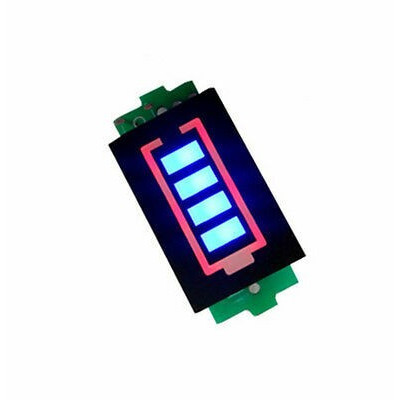

Battery Status Indicator Module 3S, 12.6V
Quickly displays the charge level of a 3S lithium battery pack up to 12.6V, indicating the percentage through 4 light strips, below 25% only the red outline remains lit. Works with 3 cells inserted, low consumption of approximately 5mA, blue with red display, compact format 43.5 x 20mm for easy integration into projects and equipment.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
Indicator module for displaying the charging status of a 3S lithium battery, 11.1V.
The module indicates the charge status of a set of 3 lithium cells in series (Ni-MH cells can also be used if their voltage fits the specifications, both when charged and discharged).
The module displays the charge level through the 4 bars, and when the battery level drops below 25%, only the red frame (battery-shaped) will light up.
Specifications:
Power supply voltage: 11.1VDC (3 lithium batteries in series of 3.7V each)
Current consumption: 5mA
Display color: Blue with Red
Dimensions mm: 43.5 x 20mm
Charge levels by voltages:
| 25% | 50% | 75% | 100% | |
| 3S | 9.9V | 10.5V | 11.1V | 11.7V |
Module polarity:
Battery connection mode (varies depending on module model):
