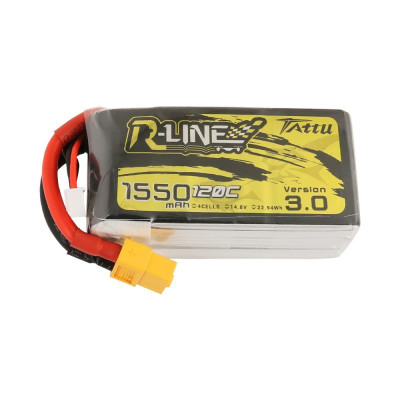

TATTU R-LINE LiPo battery, 4S1P, 4S, 1550mAh, 120C, Version 3.0, 14.8V, XT60
LiPo battery for FPV drones, designed for fast current delivery and firm throttle response, 4S 14.8V 1550mAh, 120C discharge rate for constant power in flight, XT60 connector and JST-HX balance plug for correct charging, version 3.0 for stable performance in competitive setups.
Shipping by Thursday 27 August
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
You earn points with every order, worth 5%.
LiPo battery for FPV drones brand Tattu R-Line, version 3.0, with a maximum discharge rate of 120C, with XT60 connector and balance port.
Important: For a longer lifespan, it is recommended to discharge up to 3.5V per cell and charge up to 4.2V per cell. Never discharge the battery below 3V per cell! The battery is kept, when not in use, at a voltage of 3.85V per cell. Keeping the battery charged or discharged accelerates the chemical processes that lead to its damage. Only use digital chargers with the balance function!
Specifications:
Nominal voltage: 14.8VDC
Cells: 4S
Type: LiPo
Capacity: 1550mAh
Discharge rate: 120C
Maximum discharge rate in burst : 240C
Configuration: 4S1P
Weight: 181 grams
Dimensions mm: 77 x 38.5 x 32.5
Power wire: AWG12
Balanced connector: JST-HX 2.54mm
Packaging: Cardboard box with sponge
Important:
- For a longer lifespan, it is recommended to discharge up to 3.5V per cell and charge up to 4.2V per cell. Never discharge the battery below 3V per cell!
- The battery is kept, when not in use, at a voltage of 3.85V per cell. Keeping the battery charged or discharged accelerates the chemical processes that lead to its damage.
- Only use digital chargers with the balance function!
- Never leave batteries unattended while charging!
- Keep batteries away from heat sources.
- Always check the physical integrity of the battery before charging and using.
- Completely discharge damaged, swollen or excessively high internal resistance batteries before disposing of them. Throw them only in the containers dedicated to batteries.
